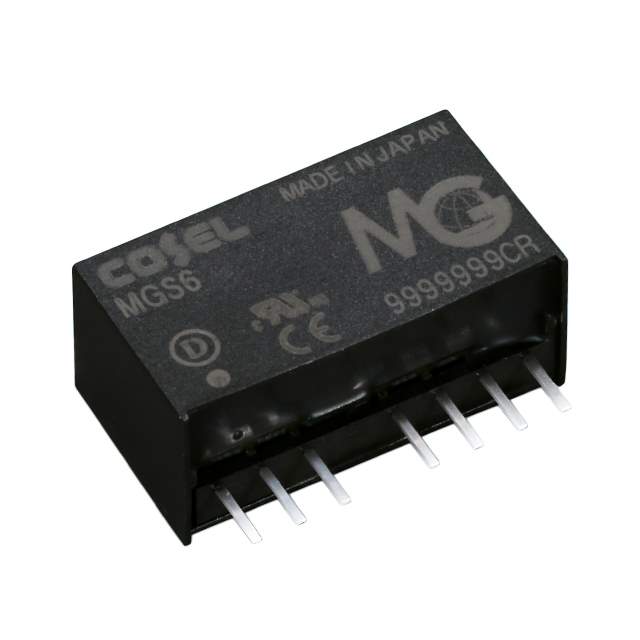

Same model may have multiple batches, images only for reference.

MGS62405

Name: MGS62405
Brand: Cosel USA, Inc.
SKU: 1339786
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	MGS62405
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 1.2A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cosel USA, Inc.
Series	MGS (6W)
Package	Tube
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	1.2A
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	85%
Mounting Type	Through Hole
Package / Case	7-SIP Module
Size / Dimension	0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Standard Package	1
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1339786-MGS62405
Ultra Librarian 3D Model	Ultra Librarian MGS62405 CAD Model

Alternative Products

Description

The Cosel USA MGS62405 DC/DC converter is an isolated module type device that belongs to the MGS (6W) series.

Standard Package: 1
Applications: ITE (Commercial)
Input Voltage: 18V to 36V
Isolation Voltage: 1.5 kV
Output Voltage: 5V
Output Current: 1.2A
Efficiency: 85%
Features: Remote On/Off and OCP
Mounting Type: Through Hole
Package: 7-SIP module
Operating Temperature: -40°C ~ 85°C (With Derating)
Size / Dimension: 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
HTSUS Code: 8504.40.9580
Compliance: California Prop 65
