Same model may have multiple batches, images only for reference.

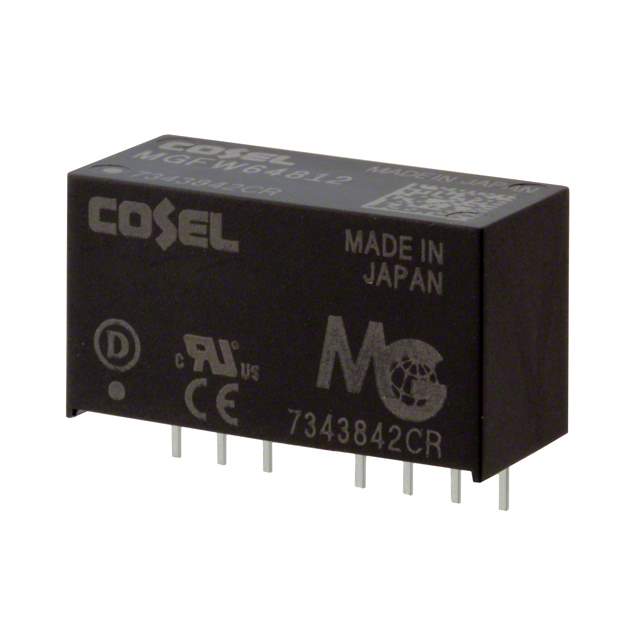

MGFW102415 Real Image
Same model may have multiple batches, images only for reference.

MGFW102415

Part No MGFW102415
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 10W / Isolated Module DC DC Converter 2 Output 15V -15V 340mA, 340mA 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGFW (10W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 340mA, 340mA
Power (Watts) 10 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 87%
Mounting Type Through Hole
Package / Case 7-SIP Module
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1337111-MGFW102415
Ultra Librarian 3D Model Ultra Librarian MGFW102415 CAD Model

Description

The Cosel USA MGFW (10W) series is a high-quality isolated module power supply that is perfect for board mount DC DC converters.

  • Manufacturer: Cosel USA
  • Series: MGFW (10W)
  • Type: Isolated Module
  • Package: Tube
  • Number of Outputs: 2
  • Input Voltage: 9V to 36V
  • Voltage Isolation: 1.5 kV
  • Features: Remote On/Off, OCP
  • Efficiency: 87%
  • Application: ITE (Commercial)
  • Package: 7-SIP Module
  • California Prop 65: Compliant
  • ECCN: EAR99
