Same model may have multiple batches, images only for reference.

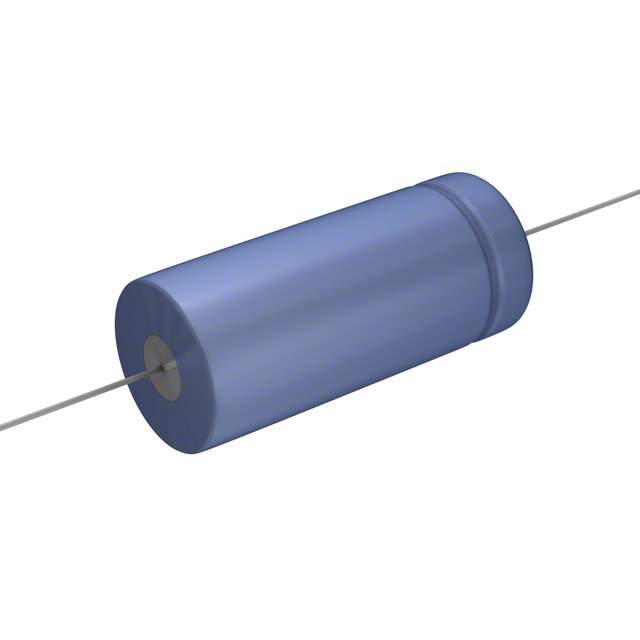

WBR80-250A Real Image
Same model may have multiple batches, images only for reference.

WBR80-250A

Part No WBR80-250A
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 80UF 250V AXIAL / 80 µF 250 V Aluminum Electrolytic Capacitors Axial, Can 3.1Ohm @ 120Hz 2000 Hrs @ 85°C
Datasheet
WBR80-250A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series WBR
Package Bulk
Capacitance 80 µF
Tolerance -10%, +100%
Voltage - Rated 250 V
ESR (Equivalent Series Resistance) 3.1Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 200 mA @ 120 Hz
Ripple Current @ High Frequency 260 mA @ 100 kHz
Dimension 0.740" Dia x 1.690" L (18.80mm x 42.93mm)
Mounting Type Through Hole
Package / Case Axial, Can
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0040
Standard Package 25
Win Source Part Number 1087516-WBR80-250A
Ultra Librarian 3D Model Ultra Librarian WBR80-250A CAD Model

Description

The WBR80-250A is an Aluminum Electrolytic Capacitor from Cornell Dubilier Electronics (CDE).

  • Purpose: General Purpose
  • Capacitance: 80 µF
  • Voltage Rating: 250 V
  • ESR: 3.1 Ohm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarization: Polar
  • Package: Axial, Can
  • Operating Temperature: -40°C to 85°C
  • Dimension: 0.740" Dia x 1.690" L (18.80mm x 42.93mm)
  • Packaging: Bulk
  • Standard Package: 25
