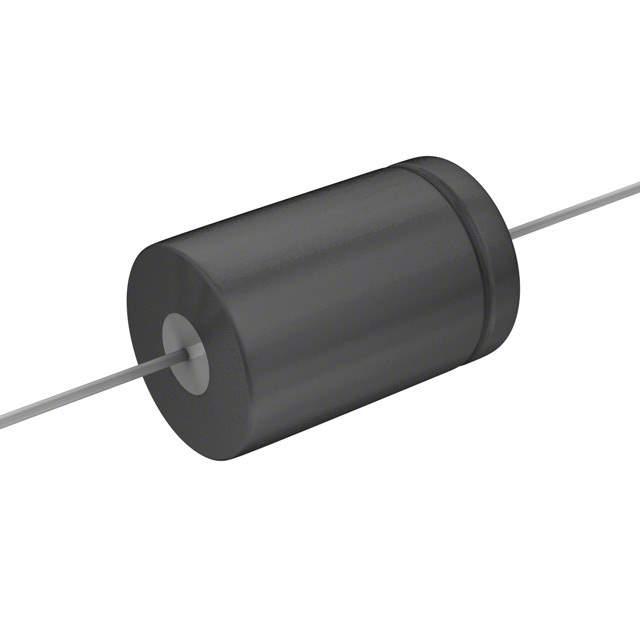

Same model may have multiple batches, images only for reference.

TC71

Get a Quote

Part No	TC71
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 8UF 450V AXIAL / 8 µF 450 V Aluminum Electrolytic Capacitors Axial, Can 21.74Ohm @ 120Hz 1000 Hrs @ 85°C
Datasheet	TC71 Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	TC
Package	Bulk
Product Status	Obsolete
Capacitance	8 µF
Tolerance	-10%, +50%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	21.74Ohm @ 120Hz
Lifetime @ Temp.	1000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	183 mA @ 120 Hz
Ripple Current @ High Frequency	228.75 mA @ 2.4 kHz
Size / Dimension	0.750" Dia x 1.125" L (19.05mm x 28.58mm)
Mounting Type	Through Hole
Package / Case	Axial, Can
Standard Package	1
RoHS Status	RoHS non-compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1350832-TC71
Ultra Librarian 3D Model	Ultra Librarian TC71 CAD Model

Description

The TC series aluminum electrolytic capacitor from Cornell Dubilier Electronics (CDE) is a general-purpose capacitor designed to deliver reliable performance.

Capacitance: 8 µF
Tolerance: -10%, +50%
Voltage Rating: 450V
ESR (Equivalent Series Resistance): 21.74Ohm @ 120Hz
Temperature Range: -40°C to 85°C
Lifetime: 1000 hours @ 85°C
Packaging: Bulk
Lead Spacing: Not applicable
