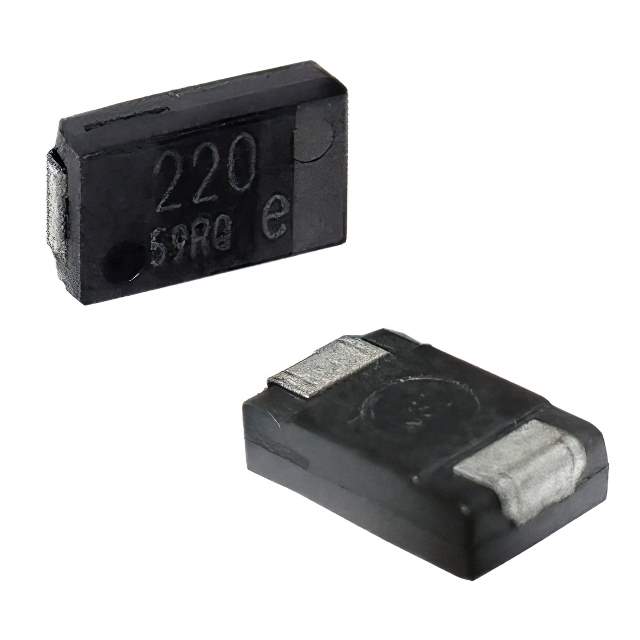

Same model may have multiple batches, images only for reference.
SPA560M06R Real Image
Same model may have multiple batches, images only for reference.

SPA560M06R

Part No SPA560M06R
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum - Polymer Capacitors
Datasheet
SPA560M06R Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum - Polymer Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SPA
Product Status Obsolete
Type Polymer
Capacitance 56 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 9mOhm
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Applications General Purpose
Ripple Current @ High Frequency 3 A @ 100 kHz
Dimension 0.287" L x 0.169" W (7.30mm x 4.30mm)
Height - Seated (Max) 0.071" (1.80mm)
Surface Mount Land Size 0.287" L x 0.169" W (7.30mm x 4.30mm)
Mounting SMD (SMT)
Package / Case 2917 (7343 Metric)
Standard Package 3,500
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308470-SPA560M06R
Ultra Librarian 3D Model Ultra Librarian SPA560M06R CAD Model

Description

The Cornell Dubilier Electronics (CDE) SPA560M06R aluminum-polymer capacitor is a high-quality electronic component with a capacitance of 56 µF and a voltage rating of 6.3 V.

  • Capacitance: 56 µF
  • Voltage Rating: 6.3 V
  • Package: Surface Mount, MLCC
  • Surface Mount Land Size: 0.287" L x 0.169" W (7.30mm x 4.30mm)
  • ESR: 9mOhm
  • Lifetime: 1000 Hrs @ 105°C
  • Application: General-Purpose
  • Tolerance: ±20%
  • Temperature Range: -40°C ~ 105°C
