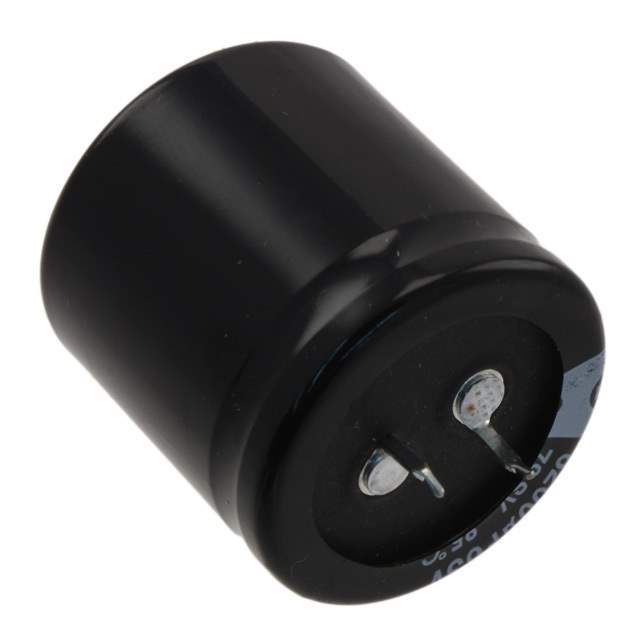

Same model may have multiple batches, images only for reference.

SLPX822M080H4P3

Name: SLPX822M080H4P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307493
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	SLPX822M080H4P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX822M080H4P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	8200 µF
Tolerance	±20%
Voltage - Rated	80 V
ESR (Equivalent Series Resistance)	40mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	5.89 A @ 120 Hz
Ripple Current @ High Frequency	7.36 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	40
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307493-SLPX822M080H4P3
Ultra Librarian 3D Model	Ultra Librarian SLPX822M080H4P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX822M080H4P3 is a high-quality aluminum electrolytic capacitor that is designed for general-purpose applications.

Capacitance: 8200 μF
Voltage Rating: 80 V
Lead Spacing: 0.394 inches
Ripple Current: 5.89 A @ low frequency and 7.36 A @ high frequency
Package: radial, can-snap-in package
Dimension: 1.378 inches in diameter
Lifetime: 3000 hours @ 85°C
ESR: 40mOhm @ 120Hz
Polarization: polarized
Temperature Range: -40°C to 85°C
