Same model may have multiple batches, images only for reference.

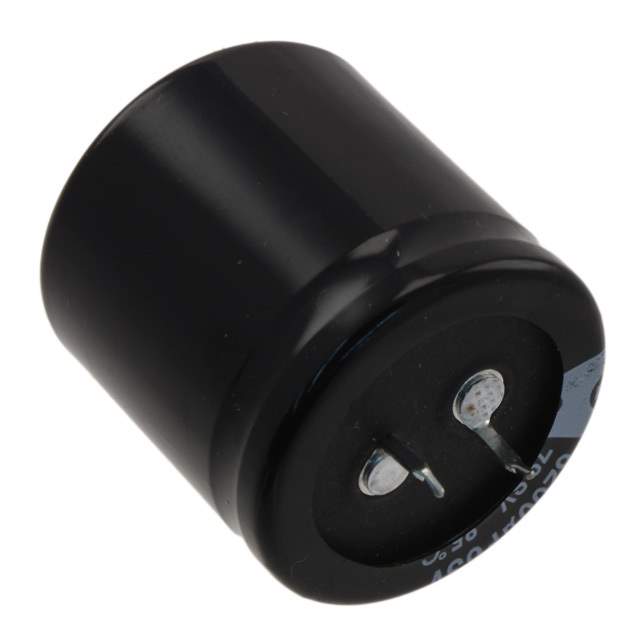

SLPX561M420H4P3 Real Image
Same model may have multiple batches, images only for reference.

SLPX561M420H4P3

Part No SLPX561M420H4P3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SLPX561M420H4P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SLPX
Package Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 420 V
ESR (Equivalent Series Resistance) 355mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 85°C
Temperature Range - Operating -25°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.95 A @ 120 Hz
Ripple Current @ High Frequency 4.34 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.378" Dia (35.00mm)
Height - Seated (Max) 1.850" (47.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 40
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307556-SLPX561M420H4P3
Ultra Librarian 3D Model Ultra Librarian SLPX561M420H4P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX series aluminum electrolytic capacitor is a general-purpose component that is ideal for a wide range of applications.

  • Capacitance: 560 µF
  • Voltage Rating: 420 V
  • Tolerance: ±20%
  • ESR: 355mOhm @ 120Hz
  • Polarized: Yes
  • Mounting Type: Through-hole
  • Package: Radial can
  • Diameter: 1.378" (35.00mm)
  • Height: 1.850" (47.00mm)
  • Operating Temperature: -25°C to 85°C
  • Lifetime: 3000 Hrs @ 85°C
  • Packaging: Bulk
  • Standard Package: 40 units
