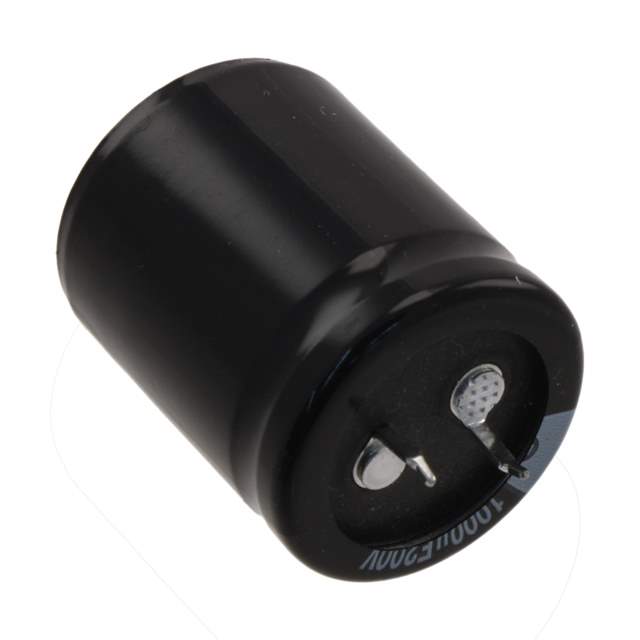

Same model may have multiple batches, images only for reference.

SLPX561M220E1P3

Name: SLPX561M220E1P3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 1307566
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SLPX561M220E1P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLPX561M220E1P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLPX
Package	Bulk
Capacitance	560 µF
Tolerance	±20%
Voltage - Rated	220 V
ESR (Equivalent Series Resistance)	355mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.18 A @ 120 Hz
Ripple Current @ High Frequency	3.2 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	0.984" (25.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1307566-SLPX561M220E1P3
Ultra Librarian 3D Model	Ultra Librarian SLPX561M220E1P3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) SLPX561M220E1P3 is a radial, can-snap-in aluminum electrolytic capacitor with a capacitance of 560 µF and voltage rating of 220 V.

Capacitance: 560 µF
Voltage Rating: 220 V
Tolerance: ±20%
ESR (Equivalent Series Resistance): 355mOhm @ 120Hz
Ripple Current: 2.18 A @ 120 Hz and 3.2 A @ 20 kHz
Temperature Range: -40°C to 85°C
Lifetime: 3000 Hrs @ 85°C
Application: General purpose
Dimension: 1.181" Dia (30.00mm)
Lead Spacing: 0.394" (10.00mm)
Polar: Yes
Surface Mount Land Size: -
