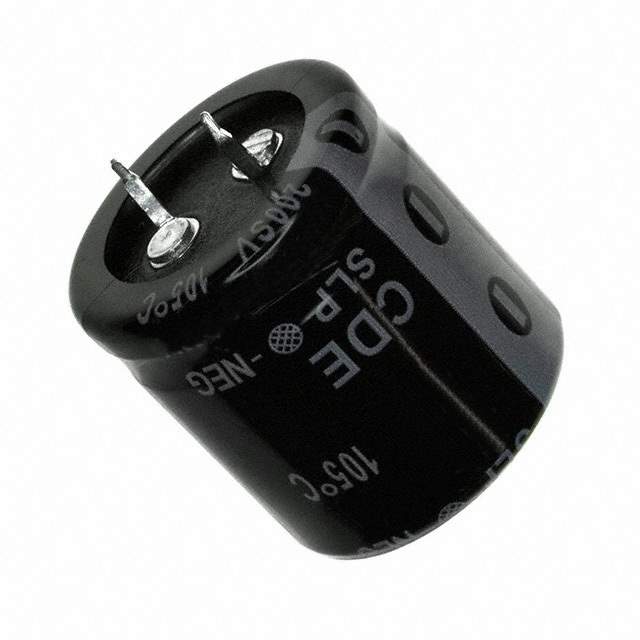

SLP561M220E3P3 Real Image
Same model may have multiple batches, images only for reference.

SLP561M220E3P3

Part No SLP561M220E3P3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SLP561M220E3P3 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SLP0712TE (750W)
Package Bulk
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 220 V
ESR (Equivalent Series Resistance) 355mOhm @ 120Hz
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 1.7 A @ 120 Hz
Ripple Current @ High Frequency 2.5 A @ 20 kHz
Lead Spacing 0.394" (10.00mm)
Dimension 1.181" Dia (30.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 50
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1307877-SLP561M220E3P3
Ultra Librarian 3D Model Ultra Librarian SLP561M220E3P3 CAD Model

Description

This aluminum electrolytic capacitor is a high-performance component designed for general-purpose applications. The Cornell Dubilier Electronics (CDE) SLP0712TE (750W) series capacitor has a capacitance of 560 µF and a voltage rating of 220 V.

  • Capacitance: 560 µF
  • Voltage Rating: 220 V
  • Package Type: Radial, can-snap-in
  • Diameter: 1.181" (30.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • ESR (Equivalent Series Resistance): 355mOhm @ 120Hz
  • Polarization: Polar
  • Temperature Range: -25°C to 105°C
  • Lifetime: 3000 Hrs @ 105°C
  • Ripple Current: 1.7 A @ 120 Hz (low frequency) and 2.5 A @ 20 kHz (high frequency)
  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Standard Package: 50
