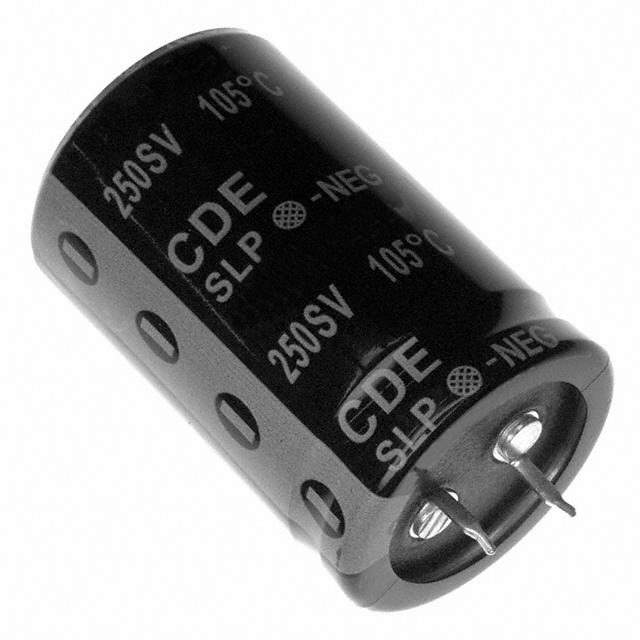

Same model may have multiple batches, images only for reference.

SLP102M220E4P3

Get a Quote

Part No	SLP102M220E4P3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SLP102M220E4P3 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SLP0712TE (750W)
Package	Bulk
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	220 V
ESR (Equivalent Series Resistance)	199mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.5 A @ 120 Hz
Ripple Current @ High Frequency	3.68 A @ 20 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.772" (45.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	50
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1308105-SLP102M220E4P3
Ultra Librarian 3D Model	Ultra Librarian SLP102M220E4P3 CAD Model

Description

The SLP0712TE (750W) series aluminum electrolytic capacitor by Cornell Dubilier Electronics (CDE) is a polar capacitor ideal for general-purpose applications.

Capacitance: 1000 µF
Tolerance: ±20%
Voltage Rating: 220 V
Mounting Type: Through Hole
ESR: 199mOhm @ 120Hz
Lifetime @ Temp.: 3000 Hrs @ 105°C
Surface Mount Land Size: Not Specified
Package/Case: Radial, Can - Snap-In
Temperature Range: -25°C ~ 105°C
Dimension: 1.181" Dia (30.00mm)
Ripple Current @ Low Frequency: 2.5 A @ 120 Hz
Ripple Current @ High Frequency: 3.68 A @ 20 kHz
