Same model may have multiple batches, images only for reference.

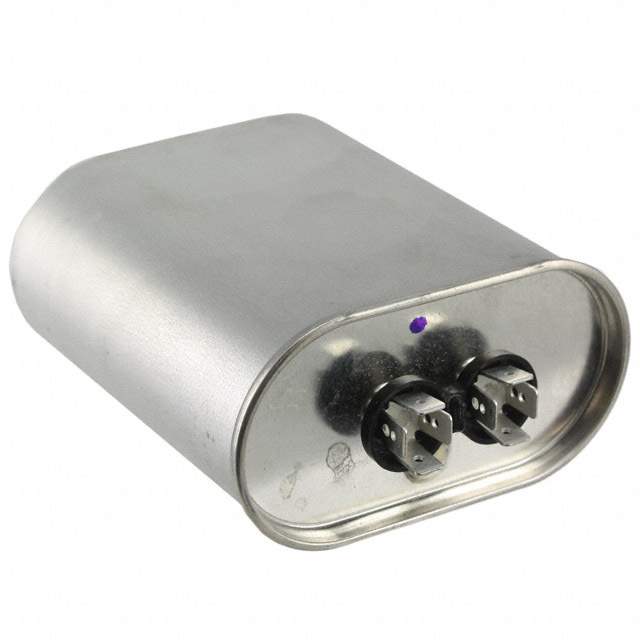

SFD66T25K391B-F Real Image
Same model may have multiple batches, images only for reference.

SFD66T25K391B-F

Part No SFD66T25K391B-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFD66T25K391B-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Capacitance 25 µF
Tolerance ±10%
Voltage Rating - AC 660V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip
Height - Seated (Max) 4.030" (102.36mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Other Names 2266-SFD66T25K391B-F
Standard Package 10
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1302598-SFD66T25K391B-F
Ultra Librarian 3D Model Ultra Librarian SFD66T25K391B-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SF series film capacitor has a capacitance of 25 µF and a voltage rating of 660V AC.

  • Capacitance: 25 µF
  • Voltage Rating: 660V AC
  • Application: Motor Run
  • Tolerance: ±10%
  • Termination: Quick connect and disconnect
  • Packaging: Bulk
  • Dielectric Material: Polypropylene (PP) and metallized
  • Mounting: Chassis mounted, requiring a holder/bracket
  • Radial Can Package/Case: 3.660" in length, 1.970" in width
  • Seated Height: 4.030"
  • Operating Temperature: -40°C to 70°C
  • Status: Obsolete
  • ECCN: EAR99
