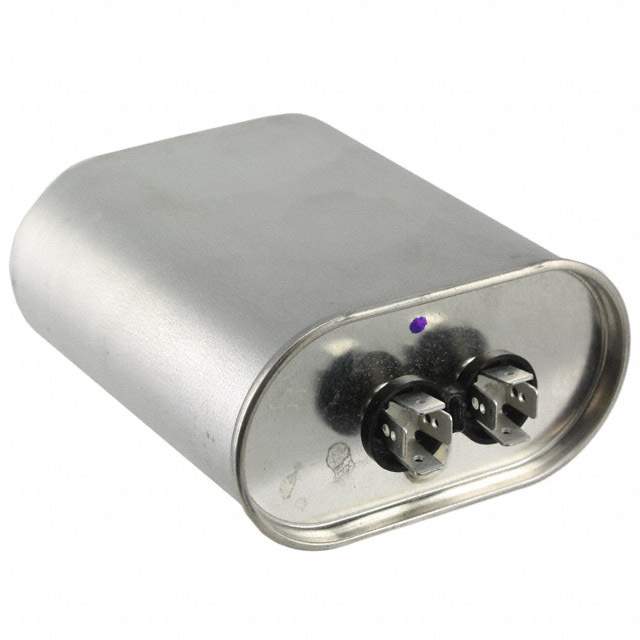

SFD66S20K391B Real Image
Same model may have multiple batches, images only for reference.

SFD66S20K391B

Part No SFD66S20K391B
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SFD66S20K391B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SF
Package Bulk
Product Status Obsolete
Capacitance 20 µF
Tolerance ±10%
Voltage Rating - AC 660V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 70°C
Mounting Type Chassis Mount, Requires Holder/Bracket
Package / Case Radial, Can
Dimension 3.660" L x 1.970" W (92.96mm x 50.04mm), Lip
Height - Seated (Max) 4.030" (102.36mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.810" (20.57mm)
Applications Motor Run
Standard Package 10
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0030
Win Source Part Number 1302501-SFD66S20K391B
Ultra Librarian 3D Model Ultra Librarian SFD66S20K391B CAD Model

Description

The SF series capacitor from Cornell Dubilier Electronics (CDE) is a reliable choice for various motor run applications, and the SFD66S20K391B is no exception.

  • Capacitance: 20 µF
  • Tolerance: ±10%
  • Dielectric Material: Polypropylene (PP)
  • Metallization: Metallized
  • Voltage Rating: 660V AC
  • Standard Package: 10 Units
  • Termination: Quick Connect/Disconnect
  • Mounting: Chassis Mounted (requires a holder/bracket)
  • Package/Case: Radial Can
  • Operating Temperature Range: -40°C to 70°C
