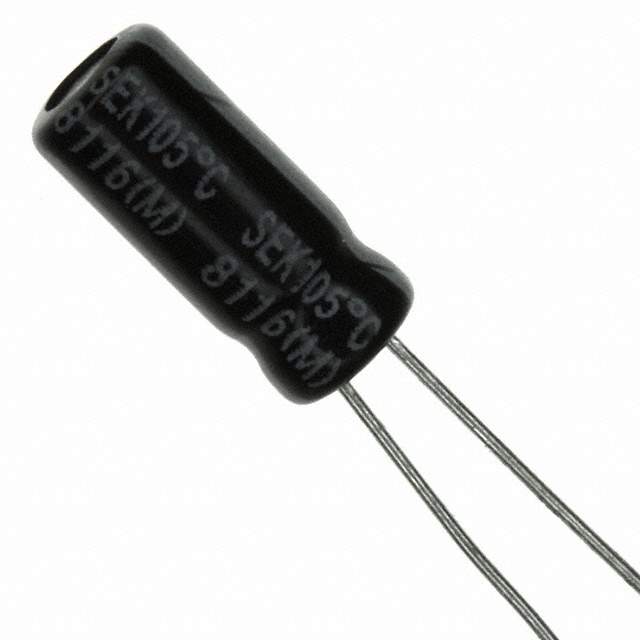

Same model may have multiple batches, images only for reference.

SEK2R2M160ST

Get a Quote

Part No	SEK2R2M160ST
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Datasheet	SEK2R2M160ST Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	SEK
Package	Bulk
Capacitance	2.2 µF
Tolerance	±20%
Voltage - Rated	160 V
ESR (Equivalent Series Resistance)	90.47Ohm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	25 mA @ 120 Hz
Ripple Current @ High Frequency	40 mA @ 10 kHz
Lead Spacing	0.098" (2.50mm)
Dimension	0.248" Dia (6.30mm)
Height - Seated (Max)	0.433" (11.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can
Standard Package	1,000
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Win Source Part Number	1308400-SEK2R2M160ST
Ultra Librarian 3D Model	Ultra Librarian SEK2R2M160ST CAD Model

Description

This Cornell Dubilier Electronics (CDE) SEK series aluminum electrolytic capacitor is a high-quality component that is ideal for general-purpose applications.

Series: SEK series
Capacitance: 2.2 µF
Voltage Rating: 160 V
Mounting Type: Through-hole
Package: Radial can package
ESR: 90.47Ohm @ 120Hz
Lifetime: 2000 hours @ 105°C
Polarization: Polar
