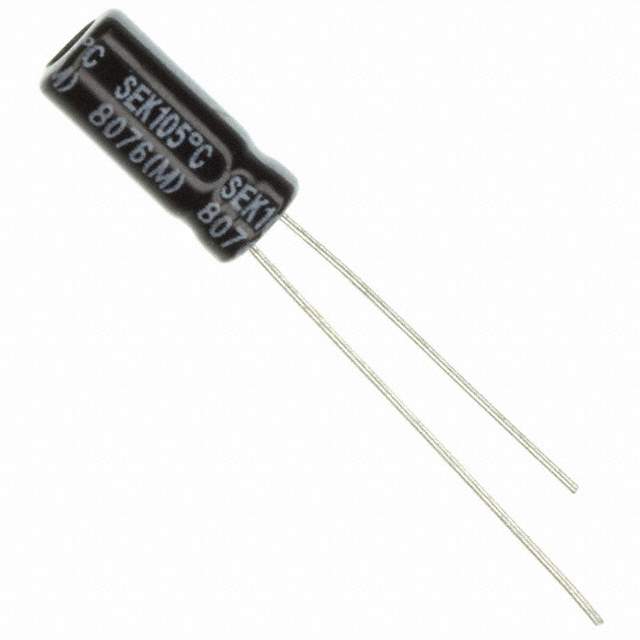

SEK101M6R3ST Real Image
Same model may have multiple batches, images only for reference.

SEK101M6R3ST

Part No SEK101M6R3ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SEK101M6R3ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SEK
Package Bulk
Capacitance 100 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 3.45Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 100 mA @ 120 Hz
Ripple Current @ High Frequency 120 mA @ 10 kHz
Lead Spacing 0.079" (2.00mm)
Dimension 0.197" Dia (5.00mm)
Height - Seated (Max) 0.512" (13.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Standard Package 1,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308409-SEK101M6R3ST
Ultra Librarian 3D Model Ultra Librarian SEK101M6R3ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) SEK Aluminum Electrolytic Capacitor is a high-quality component designed for use in general-purpose applications.

  • Capacitance: 100µF
  • Voltage Rating: 6.3V
  • Tolerance: ±20%
  • Package/Case: Radial, Can
  • Mounting Type: Through Holes
  • Package: Bulk
  • Height When Seated: 0.512 inches (13.00mm)
  • Diameter: 0.197 inches (5.00mm)
  • Ripple Current: 100mA @ 120Hz (Low Frequency), 120mA @ 10kHz (High Frequency)
  • Lifetime: 2000 hours @ 105°C
  • ESR: 3.45Ohm @ 120Hz
