Same model may have multiple batches, images only for reference.

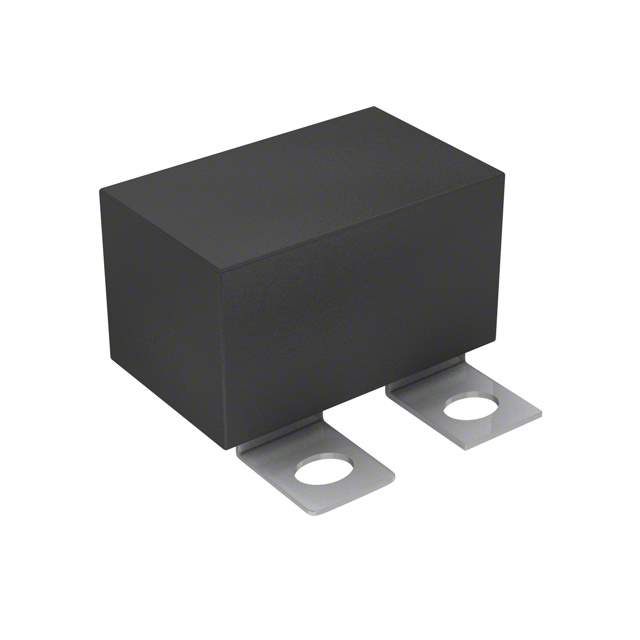

SCD105K601A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD105K601A3Z25-F

Part No SCD105K601A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD105K601A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 330V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 1.142" W (47.00mm x 29.00mm)
Height - Seated (Max) 1.051" (26.70mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302666-SCD105K601A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD105K601A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD105K601A3Z25-F is a film capacitor with a capacitance of 1 µF and a voltage rating of 600V (AC) and 330V (DC).

  • Capacitance: 1 µF
  • Voltage Rating: 600V (AC) and 330V (DC)
  • ESR (Equivalent Series Resistance): 5 mOhms
  • Dielectric Material: Polypropylene (PP), metallized
  • Polarization: Not polarized
  • Package: Rectangular box package
  • Termination: Screw terminals
  • Dimension: 1.850" L x 1.142" W (47.00mm x 29.00mm)
  • Height: 1.051" (26.70mm)
  • Application: Snubber applications
  • Temperature Range: -55°C ~ 85°C
