Same model may have multiple batches, images only for reference.

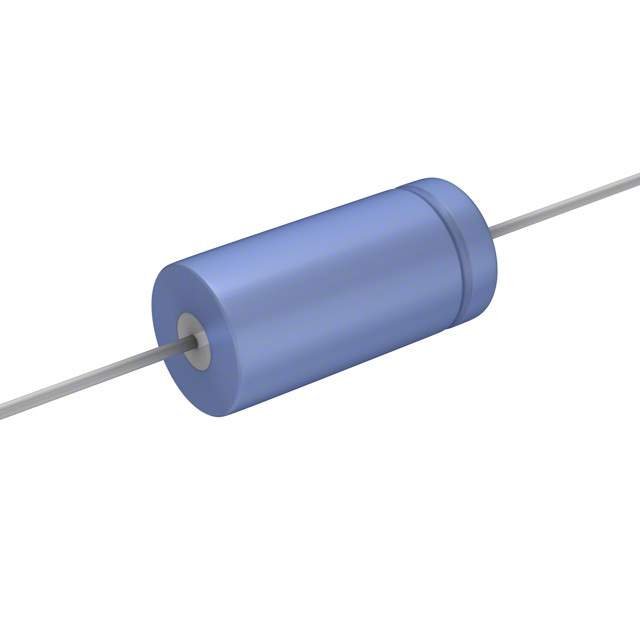

NLW20-16 Real Image
Same model may have multiple batches, images only for reference.

NLW20-16

Part No NLW20-16
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 20UF 16V AXIAL / 20 µF 16 V Aluminum Electrolytic Capacitors Axial, Can 16.6Ohm @ 120Hz 1000 Hrs @ 105°C
Datasheet
NLW20-16 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series NLW
Package Bulk
Capacitance 20 µF
Tolerance -10%, +75%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 16.6Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 62 mA @ 120 Hz
Ripple Current @ High Frequency 71.3 mA @ 10 kHz
Dimension 0.280" Dia x 0.570" L (7.11mm x 14.49mm)
Mounting Type Through Hole
Package / Case Axial, Can
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 25
Win Source Part Number 1082475-NLW20-16
Ultra Librarian 3D Model Ultra Librarian NLW20-16 CAD Model

Description

This electronic component is an aluminum electrolytic capacitor with a capacitance of 20 μF and a voltage - rated of 16 V. The manufacturer's part number is 1082475-NLW20-16. It has a tolerance of -10%, +75% and an ESR (Equivalent Series Resistance) of 16.6Ohm @ 120Hz.
