MLS283M5R0EA0A

Name: MLS283M5R0EA0A
Brand: Cornell Dubilier Electronics (CDE)
SKU: 780096
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	MLS283M5R0EA0A
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 28000UF 20% 5V FLATPACK / Cap Aluminum Lytic 28000uF 5V 20% (44.45 X 12.7 X 50.8mm) Screw Mount Radial 0.05 Ohm 19900mA 10000h 125°C
Datasheet	MLS283M5R0EA0A Datasheet
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	MLS
Packaging	Bulk
Capacitance	28000μF
Tolerance	±20%
Voltage Rating DC	5V
ESR (Equivalent Series Resistance)	50 mOhm @ 120Hz
Lifetime @ Temp.	10000 Hrs @ 85°C
Operating Temperature Range	-55°C ~ 125°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	19.9A @ 120Hz
Ripple Current - High Frequency	21.4A @ 20kHz
Lead Spacing	1.000" (25.40mm)
Dimension	2.000" L x 1.750" W (50.80mm x 44.45mm)
Height - Seated (Maximum)	0.500" (12.70mm)
Mounting	Chassis Mount
Package	FlatPack, Tabbed
Win Source Part Number	780096-MLS283M5R0EA0A
Popularity	Medium
Supply and Demand Status	Limited
Family Name	MLS
Introduction Date	June 05, 2006
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	Not Applicable
Ultra Librarian 3D Model	Ultra Librarian MLS283M5R0EA0A CAD Model

Description

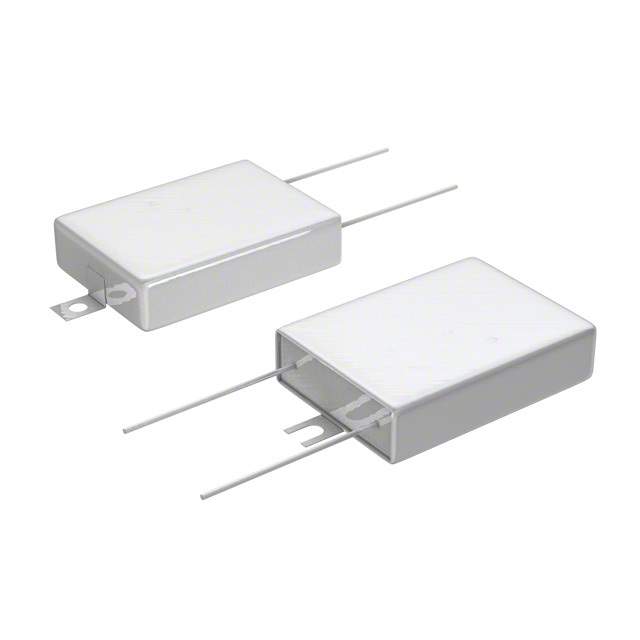

The Cornell Dubilier Electronics (CDE) MLS series capacitor is a flat pack, tabbed capacitor that is designed for general applications.

Voltage Rating: 5V DC
Capacitance: 28000μF
Tolerance: ±20%
ESR: 50mOhm @ 120Hz
Polarization: Polarized
Mounting Type: Chassis Mount
Package/Case: Flat Pack, Tabbed
Operating Temperature: -55°C to 125°C
Height: 0.500” (12.70mm)
Lead Spacing: 1.000” (25.40mm)
Package Type: Bulk
Ripple Current: 19.9A @ 120Hz, 21.4A @ 20kHz
