Same model may have multiple batches, images only for reference.

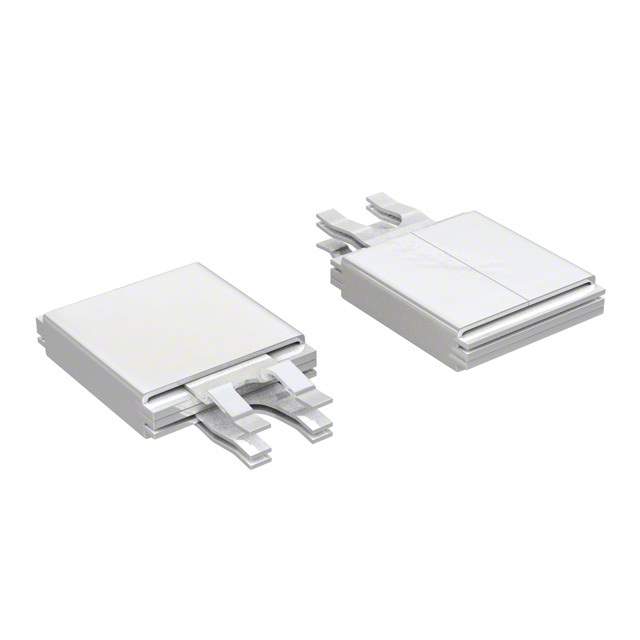

MCM01-010DF470J-F Real Image
Same model may have multiple batches, images only for reference.

MCM01-010DF470J-F

Part No MCM01-010DF470J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP PTFE 47PF 5% 1KV SMD / 47 pF Polytetrafluoroethylene (PTFE) Capacitor 1 kV Nonstandard SMD
Datasheet
MCM01-010DF470J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MCM01
Package Bulk
Capacitance 47 pF
Tolerance ±5%
Voltage - Rated 1 kV
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -55°C ~ 200°C
Mounting SMD (SMT)
Package / Case Nonstandard SMD
Features RF, High Frequency
Dimension 0.500" L x 0.400" W (12.70mm x 10.16mm)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Standard Package 100
Win Source Part Number 1034350-MCM01-010DF470J-F
Ultra Librarian 3D Model Ultra Librarian MCM01-010DF470J-F CAD Model

Description

This Cornell Dubilier Electronics (CDE) capacitor is a Mica and PTFE capacitor from the MCM01 series.

  • Series: MCM01
  • Application: RF and high frequency
  • Capacitance: 47 pF
  • Tolerance: ±5%
  • Voltage Rating: 1 kV
  • Package/Case: Nonstandard SMD
  • Dielectric Material: Polytetrafluoroethylene (PTFE)
  • Operating Temperature Range: -55°C to 200°C
  • Dimension: 0.500" L x 0.400" W (12.70mm x 10.16mm)
