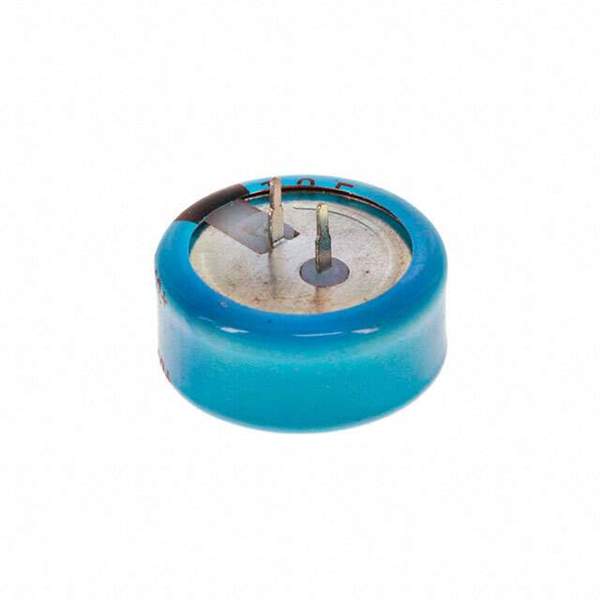

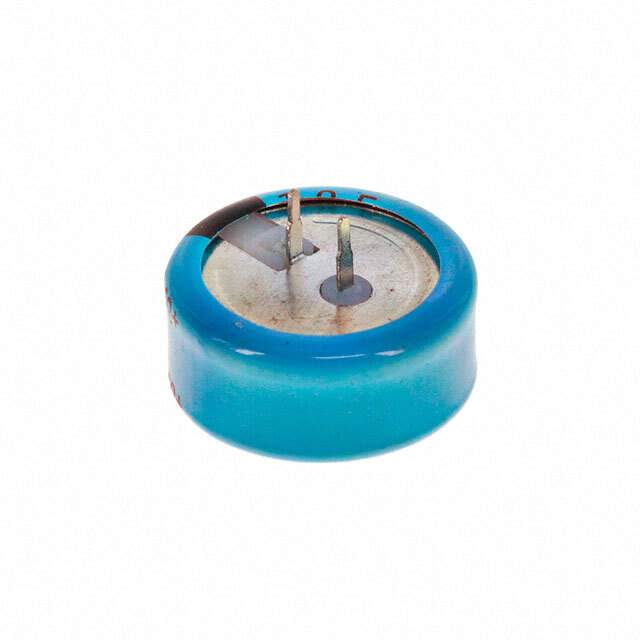

EDS105Z5R5C Real Image
Same model may have multiple batches, images only for reference.

EDS105Z5R5C

Part No EDS105Z5R5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F -20% +80% 5.5V T/H / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 30Ohm @ 1kHz 1000 Hrs @ 85°C
Datasheet
EDS105Z5R5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series EDS
Package Tray
Capacitance 1 F
Tolerance -20%, +80%
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 30Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Temperature Range - Operating -25°C ~ 85°C
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0040
California Prop 65 Warning Information
Win Source Part Number 1349799-EDS105Z5R5C
Ultra Librarian 3D Model Ultra Librarian EDS105Z5R5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) EDS series is a range of electric double layer capacitors (EDLC), also known as supercapacitors, designed for general purpose applications.

  • Capacitance: 1 F
  • Voltage Rating: 5.5 V
  • Tolerance: -20%, +80%
  • ESR (Equivalent Series Resistance): 30Ohm @ 1kHz
  • Mounting Type: Through Hole
  • Size: 0.846" Dia (21.50mm) x 0.374" (9.50mm)
  • Lifetime: 1000 Hrs @ 85°C
  • Operating Temperature: -25°C to 85°C
  • Package/Case: Radial, Can
  • REACH: Unaffected
