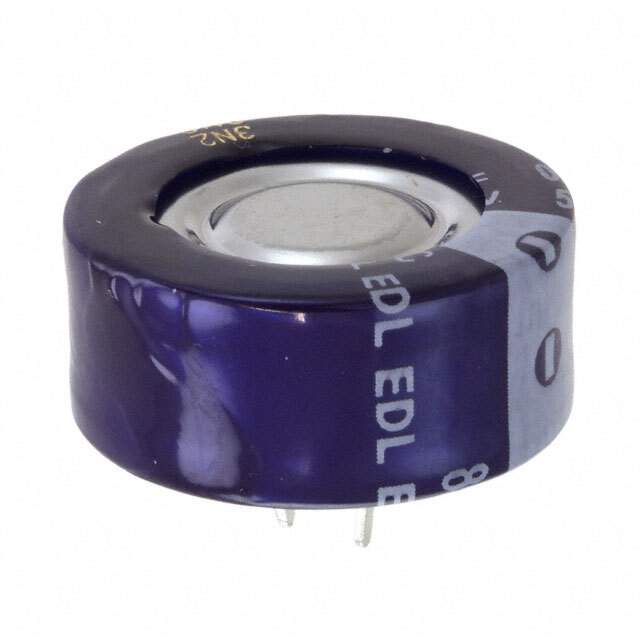

EDLF105B5R5C Real Image
Same model may have multiple batches, images only for reference.

EDLF105B5R5C

Part No EDLF105B5R5C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Electric Double Layer Capacitors, Supercaps
Description CAP 1F 5.5V THROUGH HOLE / 1 F (EDLC) Supercapacitor 5.5 V Radial, Can 50Ohm @ 1kHz 1000 Hrs @ 85°C
Datasheet
EDLF105B5R5C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Electric Double Layer Capacitors (EDLC), Supercapacitors
Mfr Cornell Dubilier Electronics (CDE)
Series F
Package Bulk
Product Status Obsolete
Capacitance 1 F
Voltage - Rated 5.5 V
ESR (Equivalent Series Resistance) 50Ohm @ 1kHz
Lifetime @ Temp. 1000 Hrs @ 85°C
Termination PC Pins
Mounting Type Through Hole
Package / Case Radial, Can
Lead Spacing 0.197" (5.00mm)
Size / Dimension 0.846" Dia (21.50mm)
Height - Seated (Max) 0.374" (9.50mm)
Temperature Range - Operating -25°C ~ 85°C
Standard Package 100
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0040
Win Source Part Number 1340841-EDLF105B5R5C
Ultra Librarian 3D Model Ultra Librarian EDLF105B5R5C CAD Model

Description

The Cornell Dubilier Electronics (CDE) F series capacitor is a radial, can type of electric double layer capacitor (EDLC) with a capacitance of 1 F and a voltage rating of 5.5 V.

  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Series: F
  • Type: Electric Double Layer Capacitor (EDLC)
  • Style: Radial, Can
  • Capacitance: 1 F
  • Voltage Rating: 5.5 V
  • Tolerance: -
  • ESR: 50Ohm @ 1kHz
  • Lifetime: 1000 hours @ 85°C
  • Mounting Type: Through-Hole
  • Package Size/Dimension: 0.846" Dia (21.50mm)
  • Height-Seated (Max): 0.374" (9.50mm)
  • Lead Spacing: 0.197" (5.00mm)
  • Operating Temperature: -25°C to 85°C
  • Lifecycle Status: Obsolete
