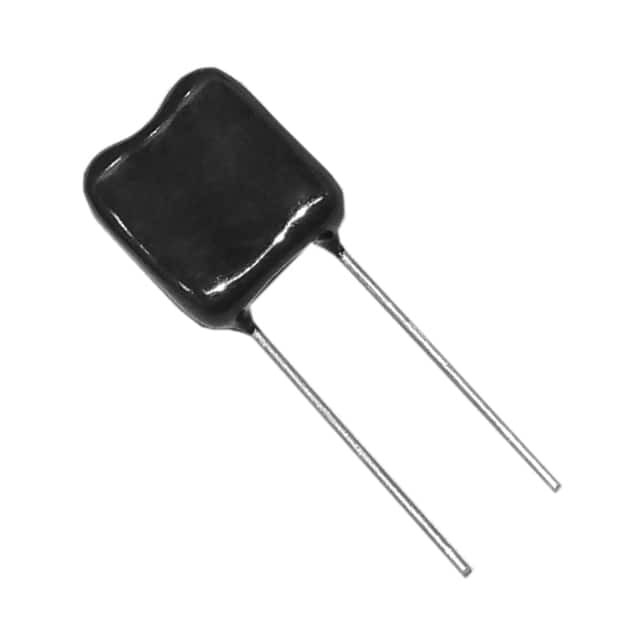

Same model may have multiple batches, images only for reference.

CM05ED470JO3

Name: CM05ED470JO3
Brand: Cornell Dubilier Electronics (CDE)
SKU: 915541
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	CM05ED470JO3
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Mica and PTFE Capacitors
Description	CAP MICA 500V / 47 pF Mica Capacitor 500 V Radial
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Mica and PTFE Capacitors
Mfr	Cornell Dubilier Electronics (CDE)
Series	CM05
Package	Bulk
Product Status	Active
Capacitance	47 pF
Tolerance	±5%
Voltage - Rated	500 V
Dielectric Material	Mica
Temperature Range - Operating	-55°C ~ 125°C
Mounting Type	Through Hole
Package / Case	Radial
Lead Spacing	0.232" (5.90mm)
Features	General Purpose
Size / Dimension	0.449" L x 0.169" W (11.40mm x 4.30mm)
Height - Seated (Max)	0.358" (9.10mm)
Standard Package	100 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Affected
ECCN	EAR99
HTSUS	8532.29.0020
California Prop 65	Warning Information
Win Source Part Number	915541-CM05ED470JO3
Ultra Librarian 3D Model	Ultra Librarian CM05ED470JO3 CAD Model

Alternative Products

Description

The electronic component with the ID 844754 is a mica and PTFE capacitor from Cornell Dubilier Electronics (CDE).

Capacitor Type: Mica and PTFE
Series: CM05
Application: General Purpose
Capacitance: 47 pF
Voltage Rating: 500 V
Package: Radial
Size (L x W): 0.449" in length and 0.169" in width
Seated Height: 0.358"
Lead Spacing: 0.232"
Operating Temperature: -55°C to 125°C
Status: Active
Standard Package: 100 pieces
REACH Compliance: Compliant
MSL Level: 1 (Unlimited)
HTSUS Code: 8532.29.0020
California Prop 65 Warning: Provided
