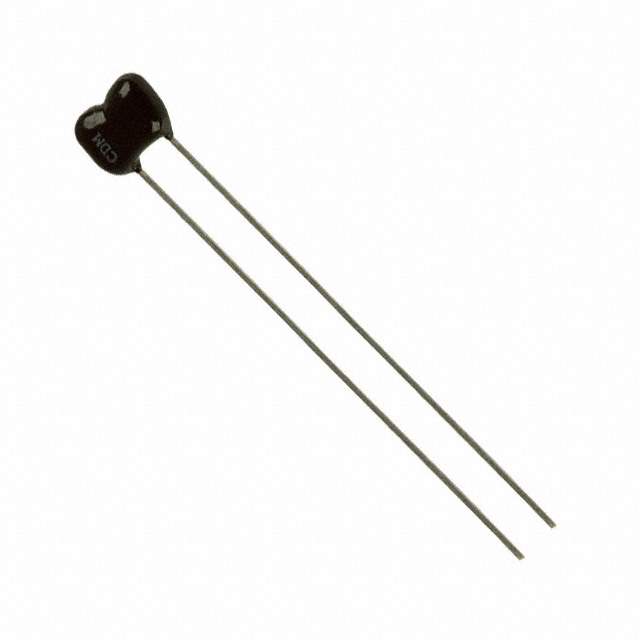

CD4ED680GO3F Real Image
Same model may have multiple batches, images only for reference.

CD4ED680GO3F

Part No CD4ED680GO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 68PF 2% 500V RADIAL / Cap Mica 68pF 500V 2% (7.4 X 2.8 X 5.6mm) Radial 2.5mm 125°C
Datasheet
CD4ED680GO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series CD4
Packaging Bulk
Capacitance 68pF
Tolerance ±2%
Voltage Rating DC 500V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package Radial
Lead Spacing 0.098" (2.50mm)
Features RF, High Frequency
Dimension 0.291" L x 0.110" W (7.40mm x 2.80mm)
Height - Seated (Maximum) 0.220" (5.60mm)
Win Source Part Number 777745-CD4ED680GO3F
Popularity Medium
Supply and Demand Status Limited
Family Name CD4
Introduction Date March 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian CD4ED680GO3F CAD Model

Description

The Cornell Dubilier Electronics (CDE) CD4ED680GO3F Capacitor is an RF and high frequency capacitor that belongs to the CD4 series.

  • Type: Radial
  • Capacitance: 68pF
  • Tolerance: ±2%
  • Dielectric Material: Mica
  • Voltage Rating DC: 500V
  • Height: 0.220" (5.60mm)
  • Lead Spacing: 0.098" (2.50mm)
  • Application: High frequency and RF
  • Packaging: Bulk
  • Popularity: Medium
