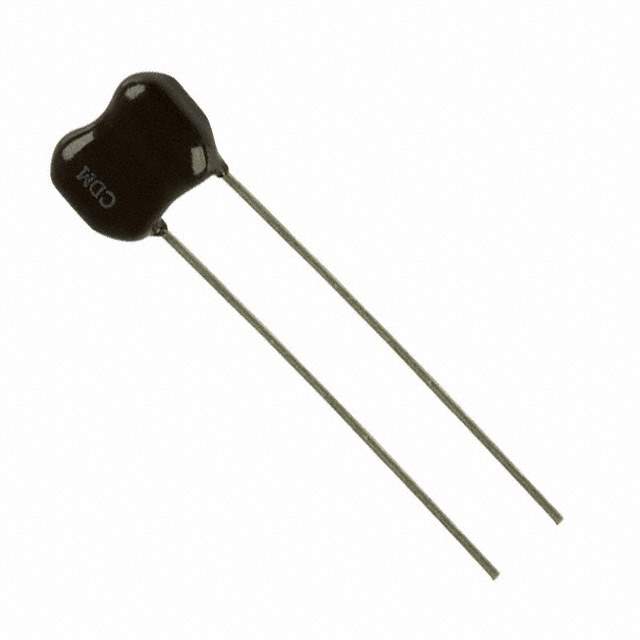

CD15CD020DO3F Real Image
Same model may have multiple batches, images only for reference.

CD15CD020DO3F

Part No CD15CD020DO3F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 2PF 0.5PF 500V RADIAL / 2 pF Mica Capacitor 500 V Radial
Datasheet
CD15CD020DO3F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CD15
Package Bulk
Capacitance 2 pF
Tolerance ±0.5pF
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 0.232" (5.90mm)
Features General Purpose
Dimension 0.449" L x 0.169" W (11.40mm x 4.30mm)
Height - Seated (Max) 0.358" (9.10mm)
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Other Names CD15CD020DO3F-ND,CD15CD020D03F,338-2672
Standard Package 100
Win Source Part Number 1051453-CD15CD020DO3F
Ultra Librarian 3D Model Ultra Librarian CD15CD020DO3F CAD Model

Description

The CD15CD020DO3F is a mica capacitor from Cornell Dubilier Electronics (CDE) that is designed for general-purpose applications.

  • Capacitance: 2 pF
  • Voltage Rating: 500 V
  • Tolerance: ±0.5pF
  • Dielectric Material: mica
  • Package: radial
  • Lead Spacing: 0.232" (5.90mm)
  • Temperature Range: -55°C ~ 125°C
  • Dimension: 0.449" L x 0.169" W (11.40mm x 4.30mm)
  • Packaging: bulk
  • Standard Package: 100
