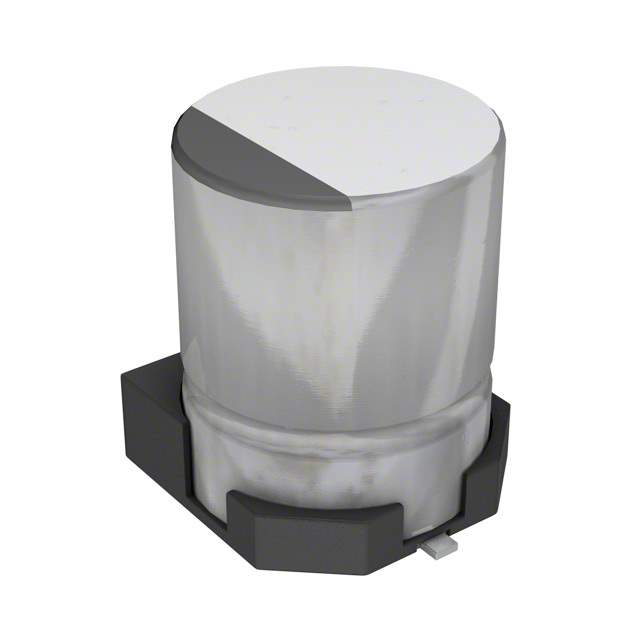

AVS337M16F24T-F Real Image
Same model may have multiple batches, images only for reference.

AVS337M16F24T-F

Part No AVS337M16F24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 330UF 20% 16V SMD / Cap Aluminum Lytic 330uF 16V 20% (8 X 10.2mm) SMD 1 Ohm 320mA 2000h 85°C Automotive T/R
Datasheet
AVS337M16F24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AVS
Packaging Reel package
Capacitance 330μF
Tolerance ±20%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 1 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 320mA @ 120Hz
Ripple Current - High Frequency 544mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777778-AVS337M16F24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AVS
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AVS337M16F24T-F CAD Model

Description

The Cornell Dubilier Electronics AVS337M16F24T-F capacitor is a high-performance component designed for general-purpose applications.

  • Capacitance: 330μF
  • Tolerance: ±20%
  • ESR: 1 Ohm @ 120Hz
  • Ripple Current: 320mA @ 120Hz and 544mA @ 10kHz
  • Voltage Rating DC: 16V
  • Polarization: Polarized
  • Package: radial, can - SMD
  • Temperature Range: -40°C to 85°C
