Same model may have multiple batches, images only for reference.

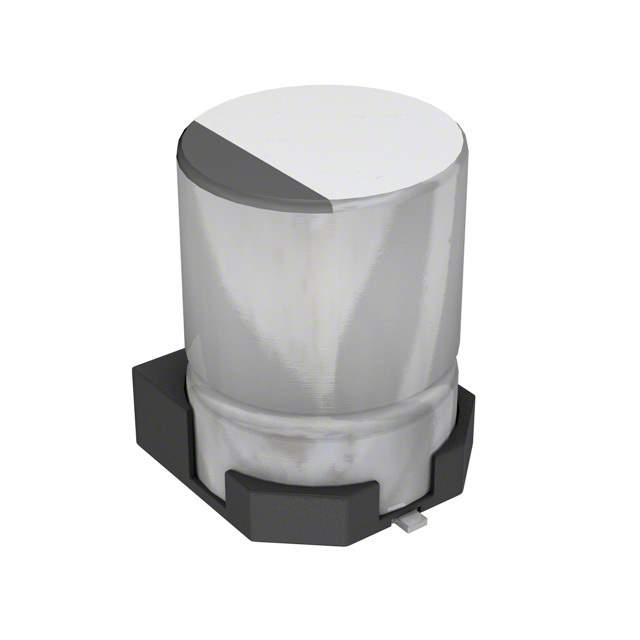

AVS226M16B12T-F Real Image
Same model may have multiple batches, images only for reference.

AVS226M16B12T-F

Part No AVS226M16B12T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 16V SMD / Cap Aluminum Lytic 22uF 16V 20% (4 X 5.4mm) SMD 19.6 Ohm 28mA 2000h 85°C Automotive T/R
Datasheet
AVS226M16B12T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AVS
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 16V
ESR (Equivalent Series Resistance) 19.6 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 28mA @ 120Hz
Ripple Current - High Frequency 47.6mA @ 10kHz
Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.213" (5.40mm)
Surface Mount Land Size 0.169" L x 0.169" W (4.30mm x 4.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777761-AVS226M16B12T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AVS
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AVS226M16B12T-F CAD Model

Description

The AVS226M16B12T-F is a high-quality, reliable capacitor manufactured by Cornell Dubilier Electronics.

  • Capacitance: 22μF
  • Tolerance: ±20%
  • ESR: 19.6 Ohm @ 120Hz
  • Series: AVS
  • Package: Radial, can - SMD
  • Surface Mount Land Size: 0.169" L x 0.169" W (4.30mm x 4.30mm)
  • Height-seated maximum: 0.213" (5.40mm)
  • Polarized: Yes
  • Ripple Current (Low Frequency): 28mA @ 120Hz
  • Ripple Current (High Frequency): 47.6mA @ 10kHz
  • Application: General
