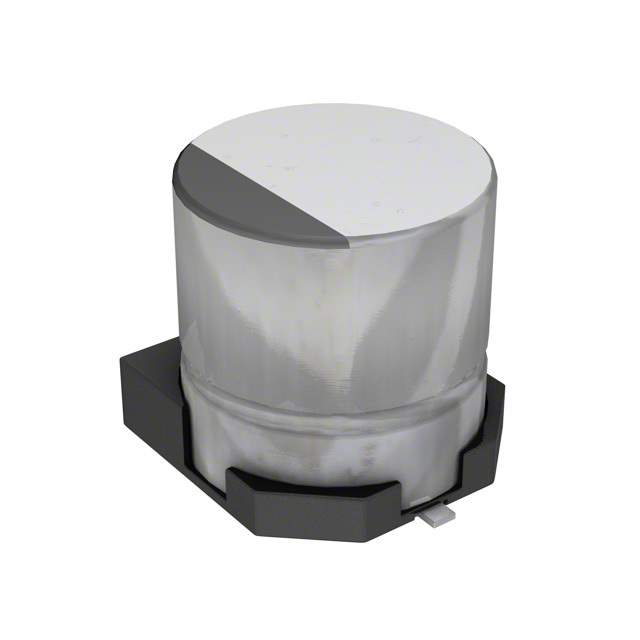

AVS158M06G24T-F Real Image
Same model may have multiple batches, images only for reference.

AVS158M06G24T-F

Part No AVS158M06G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 1500UF 20% 6.3V SMD / Cap Aluminum Lytic 1500uF 6.3V 20% (10 X 10.2mm) SMD 0.4 Ohm 700mA 2000h 85°C Automotive T/R
Datasheet
AVS158M06G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AVS
Packaging Reel package
Capacitance 1500μF
Tolerance ±20%
Voltage Rating DC 6.3V
ESR (Equivalent Series Resistance) 400 mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 700mA @ 120Hz
Ripple Current - High Frequency 1.19A @ 10kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777757-AVS158M06G24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AVS
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AVS158M06G24T-F CAD Model

Description

The AVS series of capacitors is designed for general-purpose use.

  • Capacitance: 1500μF
  • Rated Voltage: 6.3 V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 400 mOhm @ 120Hz
  • Lifetime: 2000 Hrs @ 85℃
  • Polarized: Yes
  • Surface Mount Land Size: 0.406" L x 0.406" W (10.30mm x 10.30mm)
  • Mounting Type: SMD
  • Package/Case: Radial, can
  • Dimension: 0.394" Dia (10.00mm)
  • Ripple Current (Low Frequency): 700mA @ 120Hz
  • Ripple Current (High Frequency): 1.19A @ 10kHz
  • Height: 0.402" (10.20mm)
  • Introduction Date: March 05, 2002
  • Estimated EOL Date: 2027
  • Alternative Parts: Available
  • Supply and Demand Status: Limited
  • ECCN: EAR99

The Cornell Dubilier Electronics (CDE) AVS158M06G24T-F is a radial, can-SMD type capacitor.
