Same model may have multiple batches, images only for reference.

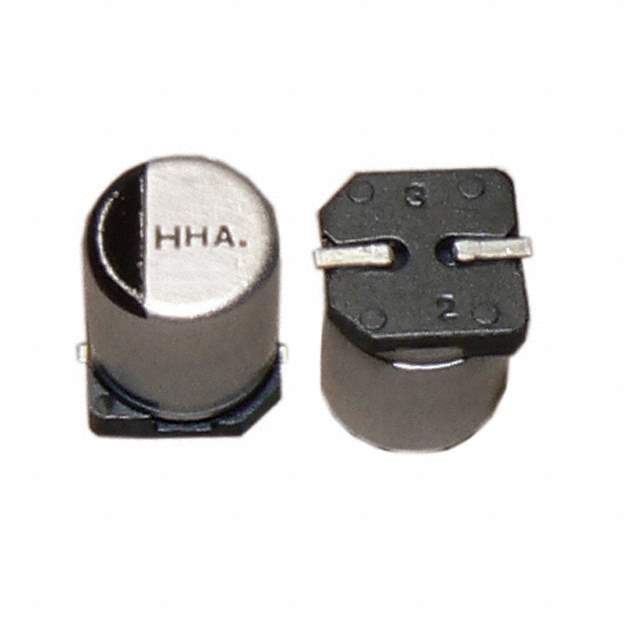

AHA476M63G24T-F Real Image
Same model may have multiple batches, images only for reference.

AHA476M63G24T-F

Part No AHA476M63G24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 63V SMD / Cap Aluminum Lytic 47uF 63V 20% (10 X 10.2mm) SMD 6.3 Ohm 50mA 2000h 105°C Automotive T/R
Datasheet
AHA476M63G24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AHA
Packaging Reel package
Capacitance 47μF
Tolerance ±20%
Voltage Rating DC 63V
ESR (Equivalent Series Resistance) 6.3 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Operating Temperature Range -55°C ~ 105°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 50mA @ 120Hz
Ripple Current - High Frequency 85mA @ 100kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777754-AHA476M63G24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AHA
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AHA476M63G24T-F CAD Model

Description

Cornell Dubilier Electronics (CDE) AHA series capacitor is a polarized capacitor with a capacitance of 47μF and voltage rating of 63V.

  • Capacitance: 47μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • ESR (Equivalent Series Resistance): 6.3 Ohm @ 120Hz
  • Lifetime: 2000 Hrs @ 105°C
  • Surface Mount Land Size: 0.406'' L x 0.406'' W (10.30mm x 10.30mm)
  • Dimension: 0.394'' Dia (10.00mm)
  • Ripple Current (Low Frequency): 50mA @ 120Hz
  • Ripple Current (High Frequency): 85mA @ 100kHz
  • Height: 0.402'' (10.20mm)
  • Packaging: Reel
  • Operating Temperature Range: -55°C to 105°C
