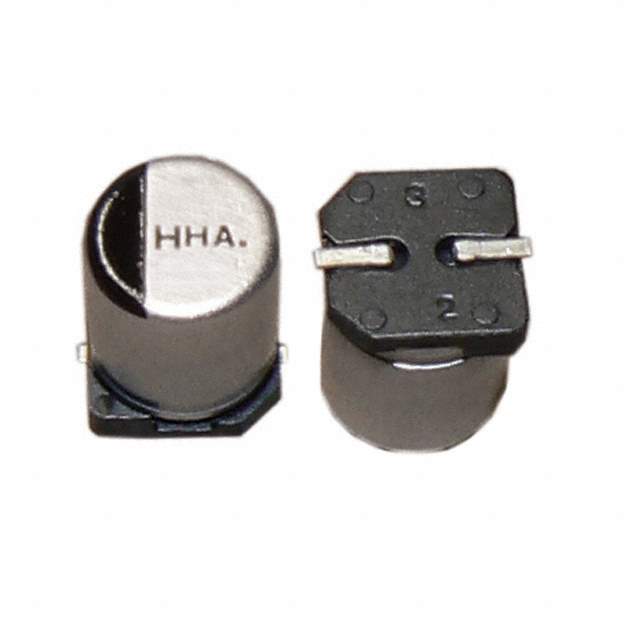

AHA226M63F24T-F Real Image
Same model may have multiple batches, images only for reference.

AHA226M63F24T-F

Part No AHA226M63F24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 63V SMD
Datasheet
AHA226M63F24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Reel - TR
Status Active
Capacitance 22μF
Tolerance ±20%
Voltage Rating 63V
ESR 13.6 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C to 105°C
Polarization Polar
Applications General Purpose
Ripple Current - Low Frequency 30mA @ 120Hz
Ripple Current - High Frequency 51mA @ 10kHz
Height - Seated (Max) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD (SMT)
Dimension Radial, Can - SMD
Win Source Part Number 1050181-AHA226M63F24T-F
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AHA226M63F24T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) capacitor is a high-quality electronic component that is suitable for general-purpose applications.

  • Capacitance: 22μF
  • Voltage Rating: 63V
  • Model: AHA226M63F24T-F
  • Polarity: Polarized
  • Tolerance: ±20%
  • Packaging: Reel - TR
  • Mounting Type: Surface Mount Technology
  • Height: 0.402" (10.20mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Ripple Current: 30mA @ 120Hz (low frequency) and 51mA @ 10kHz (high frequency)
  • Lifetime: 2000 Hrs @ 105°C
  • Temperature Range: -55°C to 105°C
  • Supply and Demand Status: balanced
