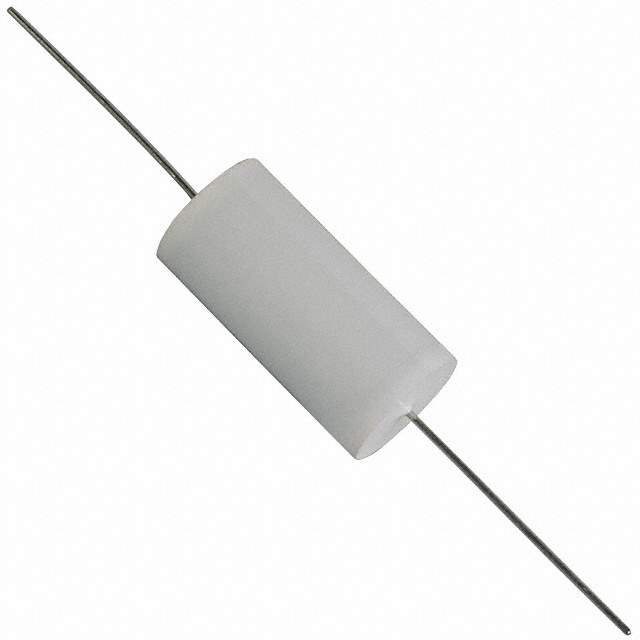

940C16P68K-F Real Image
Same model may have multiple batches, images only for reference.

940C16P68K-F

Part No 940C16P68K-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 0.68UF 1.6KVDC AXIAL / 0.68 µF Film Capacitor 500V 1600V (1.6kV) Polypropylene (PP), Metallized Axial
Datasheet
940C16P68K-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series 940C
Package Bulk
Capacitance 0.68 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 6 mOhms
Temperature Range - Operating -55°C ~ 105°C
Mounting Type Through Hole
Package / Case Axial
Dimension 1.280" Dia x 1.811" L (32.50mm x 46.00mm)
Termination PC Pins
Applications High Pulse, DV/DT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Other Names 338-2737,940C16P68KF,940C16P68K-F-ND
Standard Package 25
Win Source Part Number 1041721-940C16P68K-F
Ultra Librarian 3D Model Ultra Librarian 940C16P68K-F CAD Model

Description

The 1041721-940C16P68K-F from Cornell Dubilier Electronics (CDE) is a film capacitor.

  • Capacitance: 0.68 µF
  • Voltage Rating: 500V AC and 1600V DC (1.6kV)
  • Tolerance: ±10%
  • ESR (Equivalent Series Resistance): 6 mOhms
  • Applications: High pulse and DV/DT
  • Temperature Range: -55°C to 105°C
  • Mounting: Through hole
  • Package/Case: Axial
