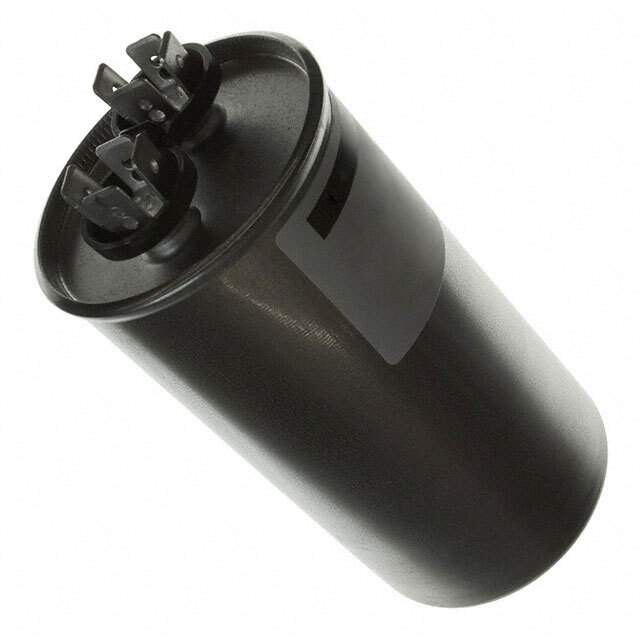

23FD3303A-F Real Image
Same model may have multiple batches, images only for reference.

23FD3303A-F

Part No 23FD3303A-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 3UF 10% 330VAC SNAP
Datasheet
23FD3303A-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 3μF
Tolerance ±10%
Voltage Rating - AC 330V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C to 70°C
Mounting Chassis Mount, Requires Holder/Bracket
Dimension 1.875" Dia x 2.380" L (47.63mm x 60.45mm)
Termination Quick Connect, Disconnect
Lead Spacing 0.813" (20.64mm)
Applications Motor Run; Power Factor Correction (PFC)
Win Source Part Number 1005062-23FD3303A-F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 23FD3303A-F CAD Model

Description

The 23FD3303A-F is a high-quality capacitor that is perfect for motor run and power factor correction (PFC) applications manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 3µF
  • Voltage Rating: 330V
  • Dielectric Material: Polypropylene (PP), metallized
  • Temperature Range: -40°C to 70°C
