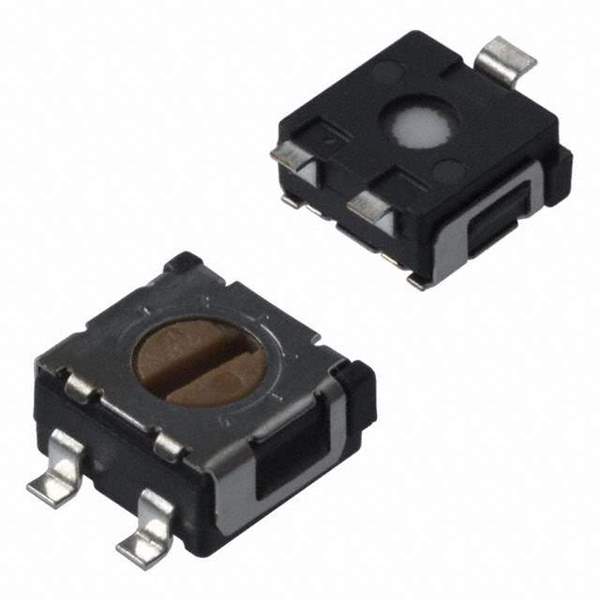

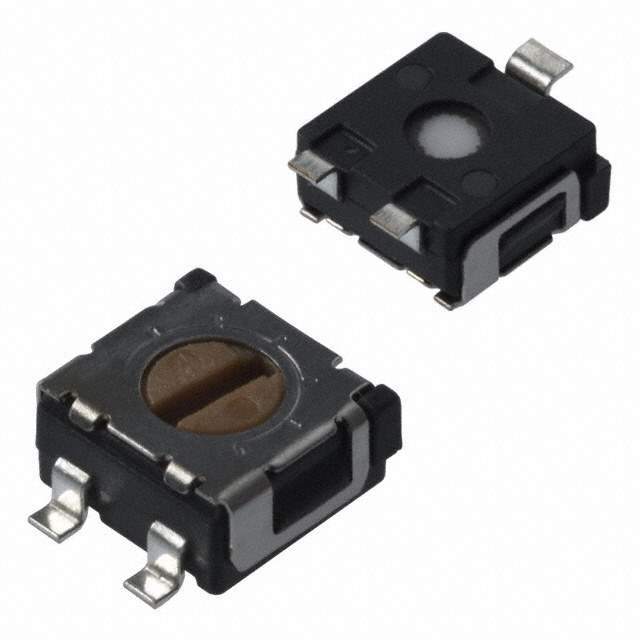

Same model may have multiple batches, images only for reference.

ST4ETB500

Name: ST4ETB500
Brand: Copal Electronics Inc.
SKU: 795529
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	ST4ETB500
Manufacturer	Copal Electronics Inc.
Catalog	Trimmer Potentiometers
Description	TRIMMER 50 OHM 0.25W SMD / Res Cermet Trimmer 500 Ohm 20% 0.25W(1/4W) 1(Elec)/1(Mech)Turns 2.3mm (5 X 6.2 X 2.3mm) Gull Wing SMD T/R
Datasheet	ST4ETB500 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Potentiometers, Variable Resistors
Manufacturer	Copal Electronics Inc.
Series	ST4
Packaging	Reel package
Resistance (Ohms)	50
Power (Watts)	0.25W, 1/4W
Tolerance	±20%
Temperature Coefficient	±250ppm/°C
Number of Turns	1
Adjustment Type	Top Adjustment
Resistive Material	Cermet
Mounting	SMD
Termination Style	Gull Wing
Dimension	Square - 0.197" L x 0.177" W x 0.091" H (5.00mm x 4.50mm x 2.30mm)
Win Source Part Number	795529-ST4ETB500
Popularity	Medium
Supply and Demand Status	Limited
Family Name	ST-4
Introduction Date	December 15, 1999
ECCN	EAR99
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian ST4ETB500 CAD Model

Description

The potentiometer from Copal Electronics Inc. is a square-shaped potentiometer.

Dimensions: 0.197" L x 0.177" W x 0.091" H (5.00mm x 4.50mm x 2.30mm)
Adjustment: Top
Resistive Material: Cermet
Tolerance: ±20%
Temperature Coefficient: ±250ppm/°C
Power: 0.25W, 1/4W
Resistance: 50
Turns: 1
Termination Style: Gull-wing
Mounting: SMD
Alternative Part Cross-Reference: ST-4TB501, ST-4B501, 23BR500TR, and 23BR500LFTR
Introduction Date: December 15, 1999
Estimated EOL Date: 2028
Halogen Free: Yes
ECCN: EAR99
