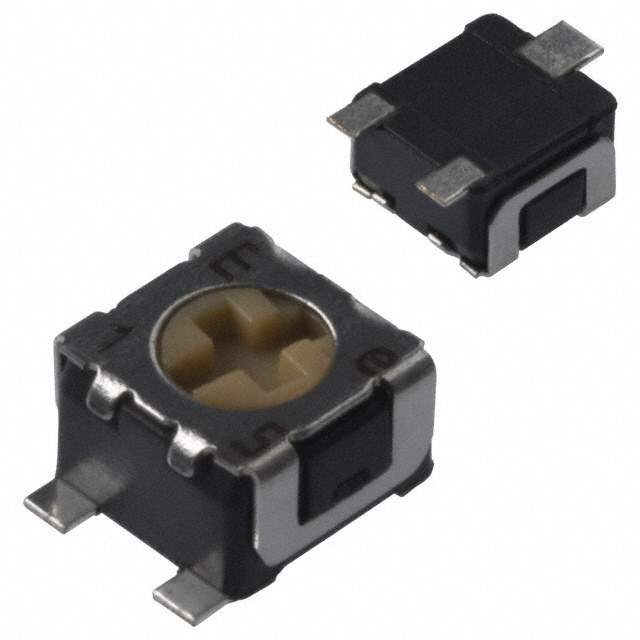

ST-32ETB501 Real Image
Same model may have multiple batches, images only for reference.

ST-32ETB501

Part No ST-32ETB501
Manufacturer Copal Electronics Inc.
Catalog Potentiometers, Variable Resistors
Description Res Cermet Trimmer 500 Ohm 20% 1/8W 1(Elec)/1(Mech)Turn 1.9mm (3.4 X 4.4 X 2mm) Gull Wing SMD T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Color Black
Composition Cermet
Height 2.0066 mm
Lead Free Yes
Length 3.4036 mm
Maximum Operating Temperature 125 °C
Max Power Dissipation 125 mW
Min Operating Temperature -55 °C
Mount Surface Mount
Number of Turns 1
Packaging Tape & Reel
Power Rating 125 mW
Radiation Hardening No
Resistance 500 Ω
RoHS Compliant
Temperature Coefficient 100 ppm/°C
Termination Gull Wing
Tolerance 20 %
Weight 50 mg
Width 3.4036 mm
Win Source Part Number 1096493-ST-32ETB501
Categories Potentiometers,Variable Resistors
Manufacturer Copal Electronics Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian ST-32ETB501 CAD Model

Description

The 1096493-ST-32ETB501 is a surface mount device (SMD) potentiometer that belongs to the potentiometers, variable resistors category.

  • Manufacturer: Copal Electronics Inc.
  • Resistance: 500Ω
  • Tolerance: 20%
  • Temperature Coefficient: 100 ppm/°C
  • Number of Turns: 1
  • Power Rating: 125 mW
  • Termination Style: gull-wing
  • Dimensions: 3.4036mm x 3.4036mm x 2.0066mm
  • Operating Temperature Range: -55°C to 125°C
  • Compliance: lead-free and RoHS-compliant
  • Market Status: shortage
