Same model may have multiple batches, images only for reference.

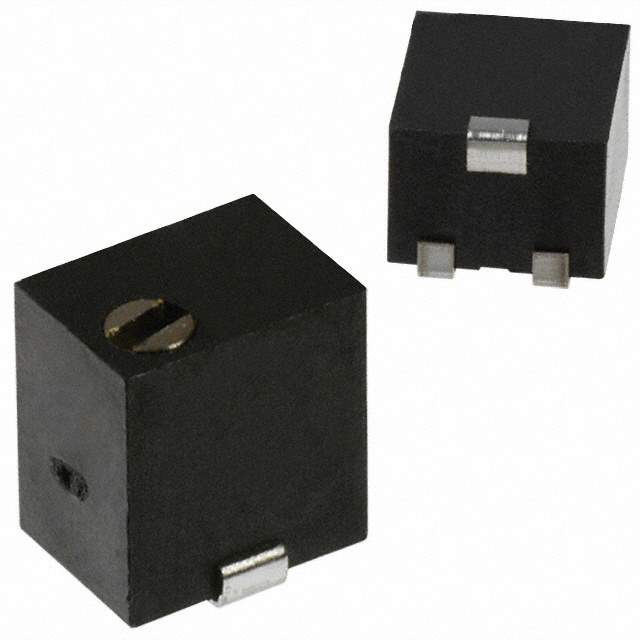

SM-42TW501 Real Image
Same model may have multiple batches, images only for reference.

SM-42TW501

Part No SM-42TW501
Manufacturer Copal Electronics Inc.
Catalog Trimmer Potentiometers
Description TRIMMER 500 OHM 0.25W SMD
Datasheet
SM-42TW501 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Potentiometers, Variable Resistors
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Resistance (Ohms) 500
Power (Watts) 0.25W, 1/4W
Tolerance ±10%
Temperature Coefficient ±100ppm/°C
Number of Turns 11
Adjustment Type Top Adjustment
Resistive Material Cermet
Mounting SMD (SMT)
Termination Style J Lead
Dimension Square - 0.189" L x 0.138" W x 0.201" H (4.80mm x 3.50mm x 5.10mm)
Win Source Part Number 129312-SM-42TW501
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial, Commercial
Ultra Librarian 3D Model Ultra Librarian SM-42TW501 CAD Model

Description

Copal Electronics Inc. brings you a top-quality potentiometer that is perfect for industrial and commercial use.

  • The Win Source Part Number for this product is 129312-SM-42TW501.
  • This product is active and has a medium popularity.
  • With a tolerance of ±10% and a temperature coefficient of ±100ppm/°C, this product is an excellent choice for your variable resistor needs.
