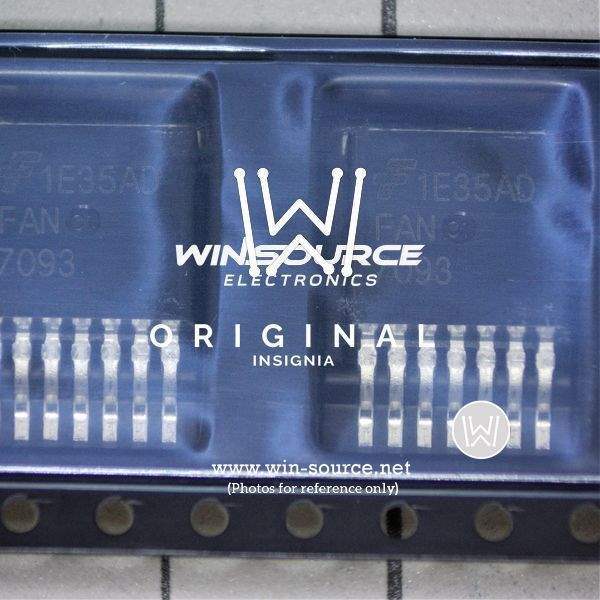

FAN7093 Real Image FAN7093 real image FAN7093 real image17973
Same model may have multiple batches, images only for reference.
FAN7093 Real Image FAN7093 real image FAN7093 real image17973
FAN7093 Real Image FAN7093 real image FAN7093 real image17973
Same model may have multiple batches, images only for reference.

FAN7093

Part No FAN7093
Manufacturer Fairchild/ON Semiconductor
Catalog PMIC - Full, Half - Bridge Drivers
Description IC HALF BRIDGE DRVR 46A TO263-7
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Full Half-Bridge Drivers
Mfr Fairchild/ON Semiconductor
Package Bulk
Product Status Active
Output Configuration Half Bridge
Applications DC Motors, General Purpose
Interface Logic
Load Type Inductive
Technology DMOS
Rds On (Typ) 18.2mOhm LS (Max), 12.3mOhm HS (Max)
Current - Output / Channel 46A
Current - Peak Output 88A
Voltage - Supply 7V ~ 18V
Voltage - Load 7V ~ 18V
Temperature Range - Operating -40°C ~ 150°C (TJ)
Features Latch Function, Slew Rate Controlled, Status Flag
Fault Protection Current Limiting, Over Temperature, Over Voltage, Short Circuit, UVLO
Mounting Type Surface Mount
Package / Case TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
Supplier Device Package TO-263-7
Base Product Number FAN7093
Standard Package 800 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 590710-FAN7093
Ultra Librarian 3D Model Ultra Librarian FAN7093 CAD Model

Description

The FAN7093 is an integrated circuit used for full half-bridge drivers in power management applications.

  • Features: Latch Function, Slew Rate Control, and a Status Flag
  • Application: DC Motor Driving
  • Applications: General Purpose
  • Package: Bulk
  • Standard Package: 800 Pieces
  • Technology: DMOS
  • Logic Interface: Yes
  • Current Output: 46A
  • Fault Protection: Current Limiting, Over Temperature, Over Voltage, Short Circuit, and UVLO
