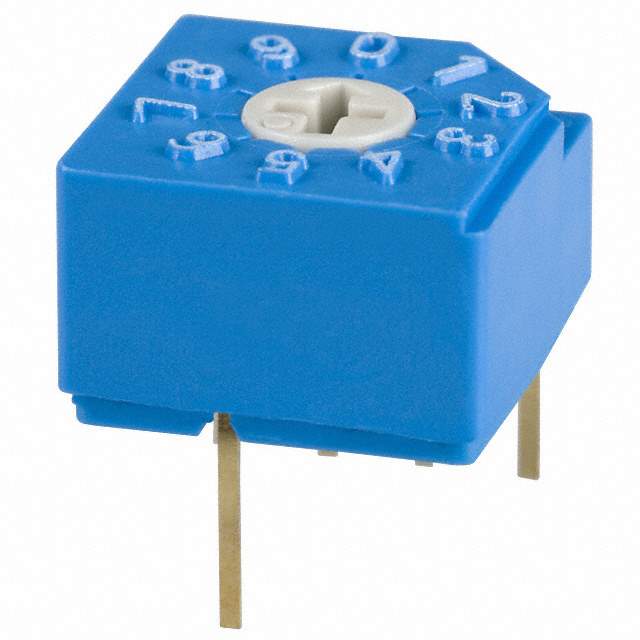

S-2010A Real Image
Same model may have multiple batches, images only for reference.

S-2010A

Part No S-2010A
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH ROTARY DIP 10-POS TOP 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Copal Electronics Inc.
Standard Package 100
Category Switches
Family DIP Switches
Series S-2000A
Packaging Bulk
Circuit BCD
Number of Positions 10
Current Rating 100mA
Voltage Rating 5VDC
Actuator Type Rotary for Tool
Actuator Level Flush Recessed
Contact Material Copper Alloy
Contact Finish Gold
Height Above Board 0.275" (6.99mm)
Mounting Style Through Hole
Termination Style PC Pin
Pitch 0.100" (2.54mm) Full
Washable Yes
Body Material Polybutylene Terephthalate (PBT)
Length 0.393" (10.00mm)
Operating Temperature Range -40°C ~ 85°C
Electrical Life 10000 Steps
Catalog S-2000A Series
Win Source Part Number 046548-S-2010A
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian S-2010A CAD Model

Description

The 046548-S-2010A is a through-hole DIP switch with 10 positions from Copal Electronics Inc.

  • Positions: 10
  • Pitch: 0.100" (2.54mm) Full
  • Termination Style: PC pin
  • Contact Finish: Gold
  • Voltage Rating: 5VDC
  • Current Rating: 100mA
  • Height Above Board: 0.275" (6.99mm)
  • Length: 0.393" (10.00mm)
  • Body Material: Polybutylene Terephthalate (PBT)
  • Circuit: BCD
  • Actuator Type: Rotary for tool
  • Electrical Life: 10000 steps
  • Actuator Level: Flush recessed
  • Washable: Yes
  • Operating Temperature: -40°C to 85°C
