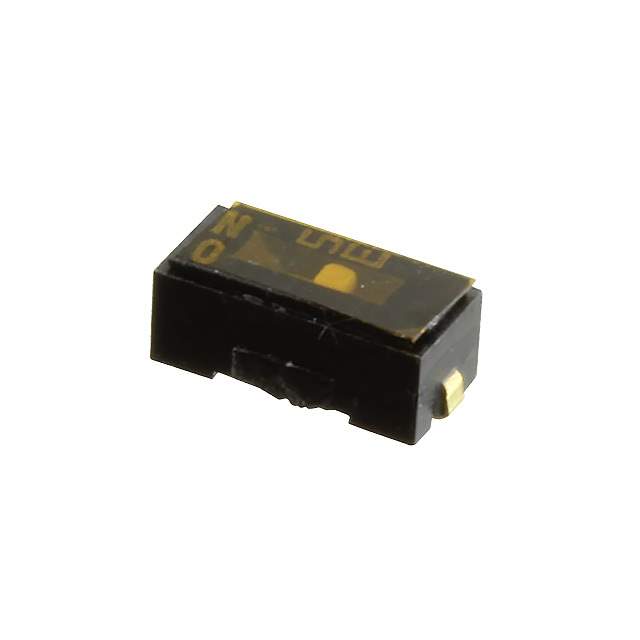

CHS-01TA1 Real Image
Same model may have multiple batches, images only for reference.

CHS-01TA1

Part No CHS-01TA1
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description Switch Slide Top Slide 0.1A 24VDC J-Hook SMD Embossed T/R
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mounting SMD (SMT)
Termination SMD/SMT
Maximum Operating Temperature 85 °C
Max Voltage Rating (DC) 24 V
Min Operating Temperature -40 °C
Mount Surface Mount
RoHS Compliant
Termination J-Hook
Throw Configuration SPST
Win Source Part Number 1051994-CHS-01TA1
Categories DIP Switches
Manufacturer Copal Electronics Inc.
Popularity Low
Supply and Demand Status Shortage
Ultra Librarian 3D Model Ultra Librarian CHS-01TA1 CAD Model

Description

The Copal Electronics Inc. CHS-01TA1 is a surface mount DIP switch manufactured by Copal Electronics Inc.

  • Maximum Voltage Rating: 24V
  • Maximum Operating Temperature: 85°C
  • Throw Configuration: Single-pole, single-throw (SPST)
  • Termination: J-hooks
