Same model may have multiple batches, images only for reference.

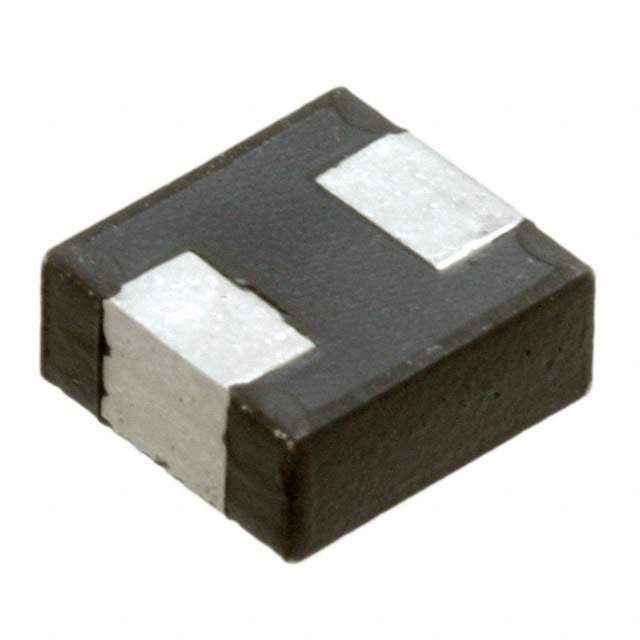

MPI4040R4-2R2-R Real Image
Same model may have multiple batches, images only for reference.

MPI4040R4-2R2-R

Part No MPI4040R4-2R2-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 2.2UH 3.9A 35 MOHM SMD / High current, high frequency, miniature power inductors
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Part Status Obsolete (End Of Life)
Type Wirewound
Material - Core Metal Composite
Inductance 2.2μH
Tolerance ±20%
Current Rating (Amps) 3.9A
Current - Saturation 5.7A
Shielding Shielded
DC Resistance (DCR) 35mOhm
Temperature Range - Operating -55°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package 1816 (4540 Metric)
Dimension 0.175" L x 0.160" W (4.45mm x 4.06mm)
Height - Seated (Maximum) 0.079" (2.00mm)
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Sufficient
Win Source Part Number 801238-MPI4040R4-2R2-R
Ultra Librarian 3D Model Ultra Librarian MPI4040R4-2R2-R CAD Model

Description

This wirewound component is manufactured by Eaton - Electronics Division.

  • Win Source Part Number: 801238-MPI4040R4-2R2-R
  • Packaging: Reel
  • Inductance: 2.2μH
  • Inductance Tolerance: ±20%
  • DC Resistance (DCR): 35mOhm
  • Current Rating (Amps): 3.9A
  • Operating Temperature: -55°C ~ 125°C
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (Unlimited)
