Same model may have multiple batches, images only for reference.

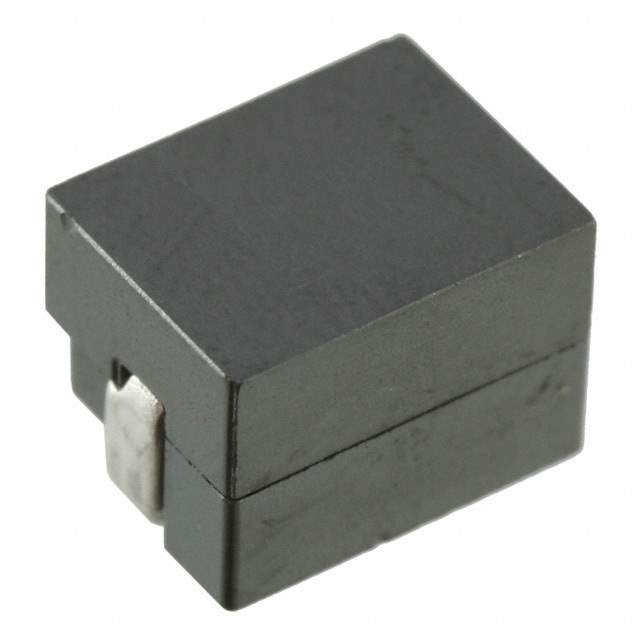

FP1007R3-R22-R Real Image
Same model may have multiple batches, images only for reference.

FP1007R3-R22-R

Part No FP1007R3-R22-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fixed Inductors
Description FIXED IND 215NH 61A 0.29 MOHM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Eaton - Electronics Division
Packaging Reel
Type Wirewound
Material - Core Ferrite
Inductance 215nH
Tolerance ±10%
Current Rating (Amps) 61A
Current - Saturation 50A
Shielding Unshielded
DC Resistance (DCR) 0.29mOhm
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100kHz
Mounting Style SMD
Manufacturer Package Nonstandard
Parts Dimension 0.402" L x 0.307" W (10.20mm x 7.80mm)
Height - Seated (Maximum) 0.295" (7.50mm)
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 759680-FP1007R3-R22-R
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian FP1007R3-R22-R CAD Model

Description

The FP1007R3-R22-R is a surface-mount wirewound inductor with an inductance of 215nH and a tolerance of ±10%.

  • Inductance: 215nH
  • Tolerance: ±10%
  • DC Resistance: 0.29mOhm
  • Saturation Current: 50A
  • Temperature Range: -40°C to 125°C
  • Height when seated: 0.295" (7.50mm)
  • Dimension: 0.402" L x 0.307" W (10.20mm x 7.80mm)
