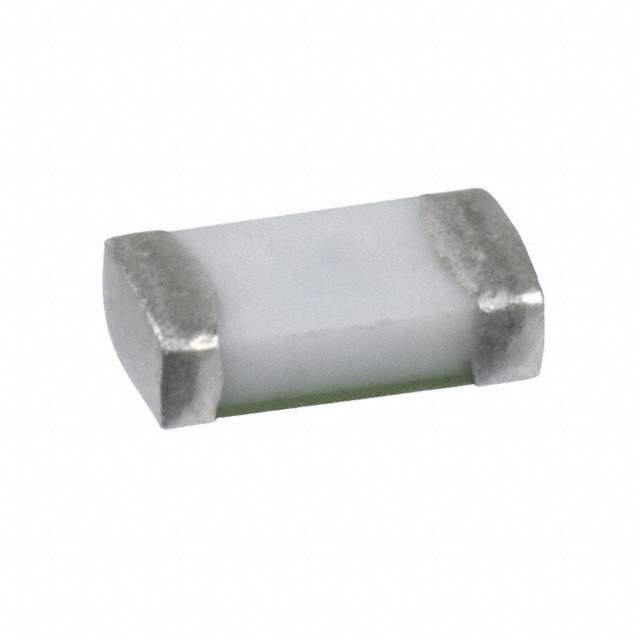

The Cooper Bussmann 3216FF2-R is a fast-acting surface mount fuse designed to protect sensitive electronic circuits from overcurrent conditions. This fuse is part of Cooper Bussmann's extensive line of circuit protection devices, renowned for their reliability and performance. The compact size and surface mount design make it ideal for high-density circuit board applications.

Applications

• Portable electronic devices (smartphones, tablets)
• Solid state drives (SSDs)
• LCD/LED Televisions
• Power supplies
• Gaming consoles

Features

• Fast-acting fuse characteristics
• Surface mount package
• Compact 1206 size (3.2mm x 1.6mm)
• High interrupting rating
• RoHS compliant

Benefits

• Provides rapid overcurrent protection, minimizing damage to sensitive components.
• Saves board space with a small surface mount footprint.
• Easy to integrate into automated assembly processes.
• Enhances system reliability by preventing catastrophic failures.
• Complies with environmental regulations, reducing environmental impact.

Additional Details

The 3216FF2-R has a current rating of 2A and a voltage rating, typically 32V or 63V (consult the datasheet). Its operating temperature range is usually between -55°C to +125°C. The fuse is constructed using ceramic materials and features a thin film element that melts quickly under overcurrent conditions, interrupting the circuit. It is essential to refer to the product datasheet for specific electrical characteristics, temperature derating curves, and recommended soldering profiles.
