Same model may have multiple batches, images only for reference.

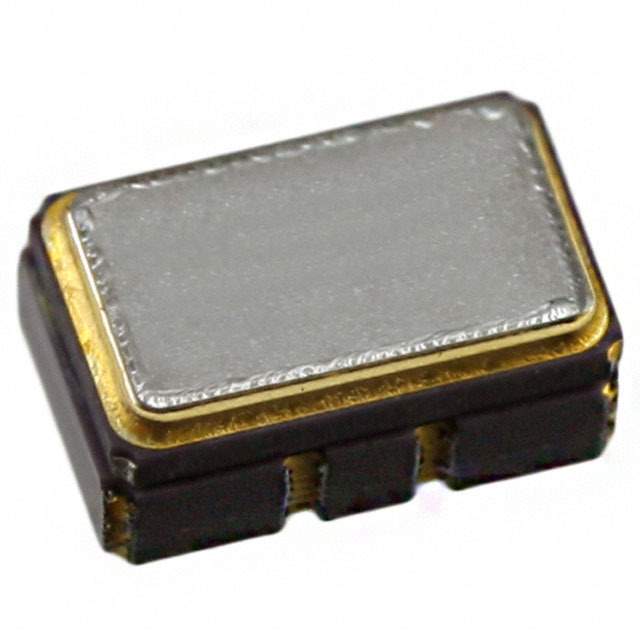

M200F-040.0M Real Image
Same model may have multiple batches, images only for reference.

M200F-040.0M

Part No M200F-040.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC TCXO 40.0000MHZ LVCMOS / 40 MHz TCXO LVCMOS Oscillator 3.3V 8-SMD, No Lead
Datasheet
M200F-040.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor Winfield
Series M200
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 40 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±200ppb
Temperature Range - Operating -40°C ~ 85°C
Current - Supply (Max) 3.3mA
Mounting Type Surface Mount
Package / Case 8-SMD, No Lead
Size / Dimension 0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max) 0.083" (2.10mm)
Standard Package 250
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1338776-M200F-040.0M
Ultra Librarian 3D Model Ultra Librarian M200F-040.0M CAD Model

Description

The M200 series TCXO oscillator from Connor Winfield is a high-performance crystal oscillator that comes in a small 8-SMD, no-lead package. It operates @ a frequency of 40 MHz with a frequency stability of ±200ppb.

  • Series: M200
  • Type: TCXO Oscillator
  • Package: 8-SMD, No-Lead
  • Frequency: 40 MHz
  • Frequency Stability: ±200ppb
  • Output: LVCMOS
  • Voltage Supply: 3.3V
  • Current Supply (Max): 3.3mA
  • Temperature Range: -40°C to 85°C
  • REACH Status: REACH Unaffected
  • HTSUS Code: 8542.39.0001
