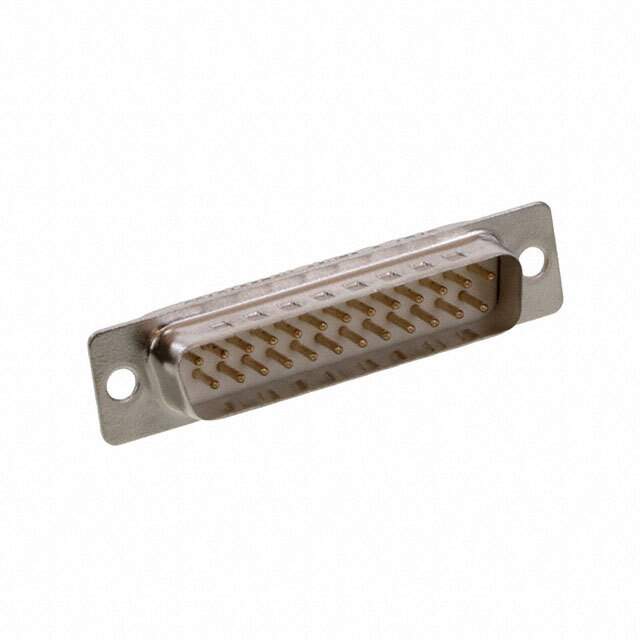

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>D-Sub Connectors
Mfr Conec
Package Bulk
Connector Style D-Sub
Connector Type Plug, Male Pins
Number of Positions 25
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Shell Size, Connector Layout 3 (DB, B)
Contact Type Signal
Flange Feature Housing/Shell (Unthreaded)
Termination Solder Cup
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Ingress Protection IP20
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Features Grounding Indents
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic
Contact Material Copper Alloy
Temperature Range - Operating -55°C ~ 105°C
Base Product Number 301A100
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4030
Other Names 626-1933,301A10059X-ND
Standard Package 50
Win Source Part Number 1229905-301A10059X
Ultra Librarian 3D Model Ultra Librarian 301A10059X CAD Model

Description

The 1229905-301A10059X is a high-quality connector that is designed to be used in various electronic devices.

  • Manufacturer: Conec
  • Category: Connectors, Interconnects>D-Sub Connectors
  • Positions: 25
  • Color: Black
  • Grounding: Grounding Indents
  • Connector Type: Plug, Male Pins
  • Contact Type: Signal
  • Rows: 2
  • Termination: Solder Cup
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Contact Form: Stamped
  • Wire Gauge: No Wire Gauge
  • Contact Material: Copper Alloy
  • Connector Style: D-Sub
  • Voltage Rating: 250V
  • Ingress Protection: IP20
  • Material Flammability Rating: UL94 V-0
  • Standard Package: 50
  • Flange Feature: Housing/Shell (Unthreaded)
  • Shell Material: Steel
  • Shell Finish: Tin Plated
  • Dielectric Material: Thermoplastic
  • Shell Size: 3 (DB, B)
  • Mounting Type: Free Hanging (In-Line)
  • Temperature Range: -55°C ~ 105°C
  • Backset Spacing: No Backset Spacing
  • ECCN: EAR99
  • MSL Level: Not Applicable
  • Current Rating (Amps): 3A
  • REACH Status: REACH Unaffected
  • HTSUS: 8536.69.4030
  • Other Names: 626-1933 and 301A10059X-ND
