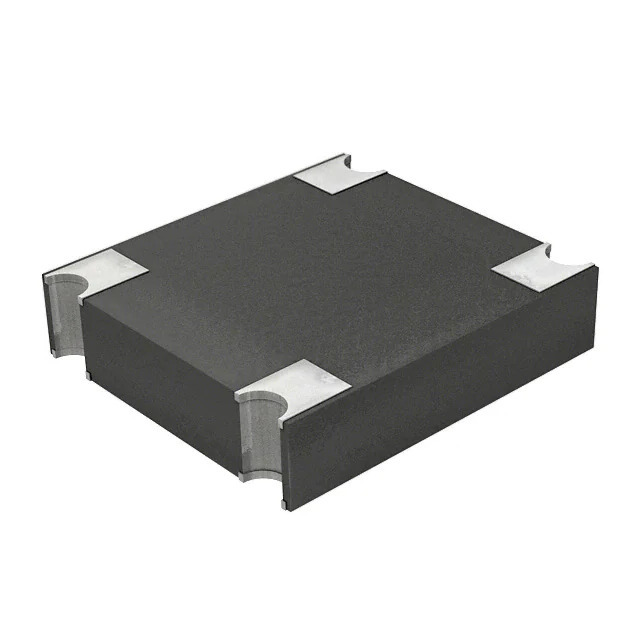

Z4GP210-HF Comchip Technology
Same model may have multiple batches, images only for reference.

Z4GP210-HF

Part No Z4GP210-HF
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 1KV 2A ABS
Datasheet
Z4GP210-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 950 mV @ 2 A
Current - Reverse Leakage @ Vr 5 µA @ 1000 V
Temperature Range - Operating -55°C ~ 175°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Supplier Device Package ABS(Z4)
Base Product Number Z4GP210
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1368024-Z4GP210-HF
Ultra Librarian 3D Model Ultra Librarian Z4GP210-HF CAD Model

Description

The Z4GP210-HF is a bridge rectifier diode from Comchip Technology.

  • Series: Z4GP210
  • Temperature Range: -55°C to 175°C
  • MSL Level: 1 (Unlimited)
  • Packaging: Tape and Reel
  • Mounting Type: Surface Mount
  • Package: 4-SMD, No-Lead
  • Forward Voltage: 950mV @ 2A
  • Reverse Leakage Current: 5μA @ 1000V
  • Technology: Standard
