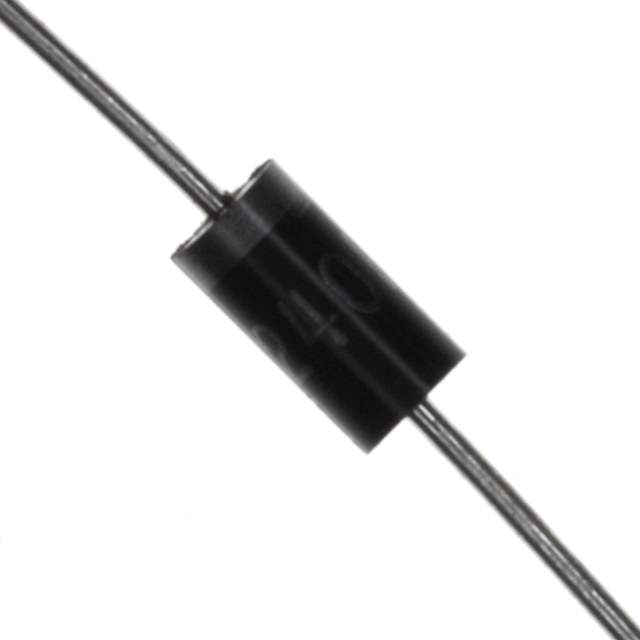

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 60V
Current - Average Rectified (Io) 2A
Voltage - Forward (Vf) (Max) @ If 700mV @ 2A
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 500μA @ 60V
Mounting Through Hole
Case / Package DO-15
Operating Temperature - Junction -65°C to 125°C
Win Source Part Number 1094481-SB260E-G
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SB260E-G CAD Model

Description

The SB260E-G from Comchip Technology is a Schottky diode that is designed to deliver optimal performance.

  • Voltage Rating: 60V
  • Average Rectified Current Rating: 2A
  • Maximum Forward Voltage: 700mV @ 2A
  • Maximum Reverse Leakage Current: 500μA @ 60V
  • Package: reel
  • Mounting: through-hole technology
