Same model may have multiple batches, images only for reference.

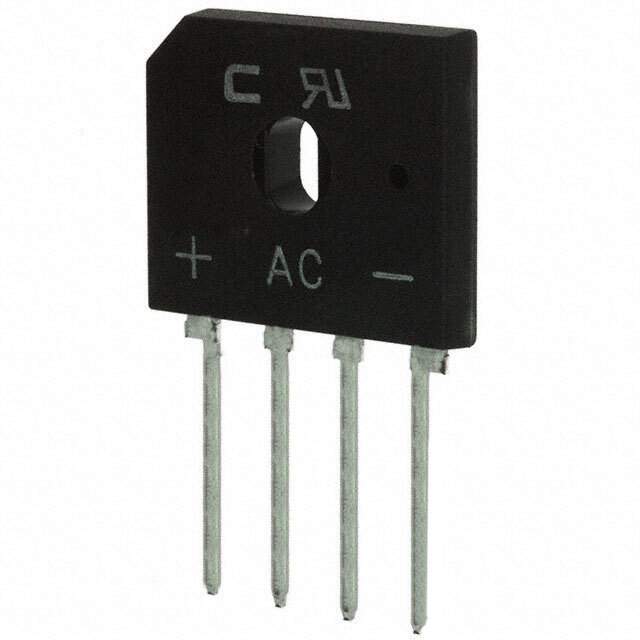

GBU2510-G Real Image
Same model may have multiple batches, images only for reference.

GBU2510-G

Part No GBU2510-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 1000V 25A GBU
Datasheet
GBU2510-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube/Rail
Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1000V
Current - Average Rectified (Io) 25A
Voltage - Forward (Vf) (Max) @ If 1V @ 12.5A
Current - Reverse Leakage @ Vr 10μA @ 1000V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting Through Hole
Case / Package GBU
Win Source Part Number 1040871-GBU2510-G
Popularity Medium
Supply and Demand Status Balance
Quantity per package 20
Ultra Librarian 3D Model Ultra Librarian GBU2510-G CAD Model

Description

The Comchip Technology single-phase diode is a through-hole mounted device that is ideal for use in a range of electronic devices.

  • Average Rectified Current: 25A
  • Peak Reverse Voltage: 1000V
  • Forward Voltage: 1V @ 12.5A
  • Reverse Leakage Current: 10μA @ 1000V
  • Package: GBU
  • Packaging: tube/rail
  • Temperature Range: -55°C to 150°C (TJ)
  • Status: active
  • Supply and Demand Status: balanced
  • Quantity per Package: 20
