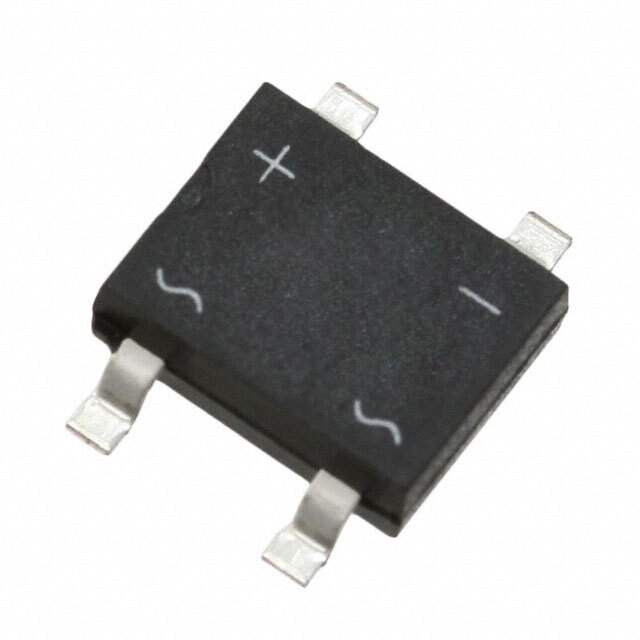

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr Comchip Technology
Package Tape & Reel
Product Status Obsolete
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 1 kV
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Current - Reverse Leakage @ Vr 10 µA @ 1000 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DFS
Base Product Number DF210
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584433-DF210ST-G
Ultra Librarian 3D Model Ultra Librarian DF210ST-G CAD Model

Description

The DF210ST-G is a standard bridge rectifier from Comchip Technology.

  • Type: Single-phase diode
  • Average Rectified Current (Io): 2A
  • Forward Voltage (Vf): 1.1V @ 2A
  • Current Leakage: 10μA @ 1000V reverse voltage
  • Peak Reverse Voltage: 1kV
  • Mounting Type: Surface mountable
  • Package: 4-SMD, Gull Wing
  • Applications: Rectification, power supplies, and motor control
