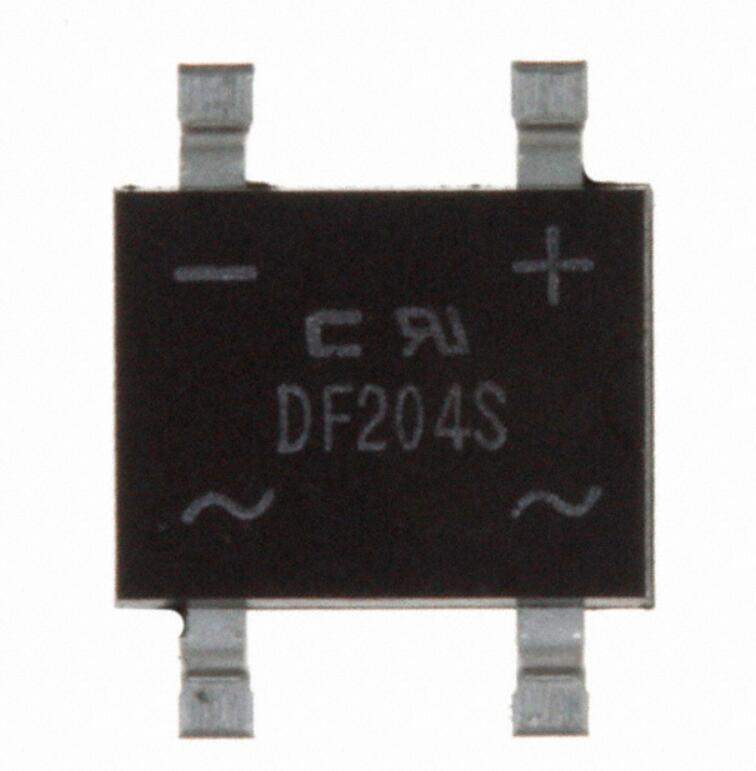

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number WS1202386-DF204S-G
Win Source Part Number Cross
Manufacturer Comchip Technology
Category Discrete Semiconductor Products Diodes Bridge Rectifiers
Package Tube
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 400 V
Current - Average Rectified (Io) 2 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 2 A
Ultra Librarian 3D Model Ultra Librarian DF204S-G CAD Model

Description

The Comchip Technology 1202386 is a single phase bridge rectifier diode.

  • Technology: Standard
  • Current Average Rectified (Io): 2A
  • Forward Voltage (Vf): 1.1V @ 2A
  • Peak Reverse Voltage: 400V
  • Package: Tube
  • Product Status: Active
