Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 3.3V (Max)
Max Clamping Voltage 8V
Peak Pulse Current(Ippm) 5A (8/20μs)
Power Dissipation - Pd 40W
Applications General Purpose
Capacitance @ Frequency 25pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)

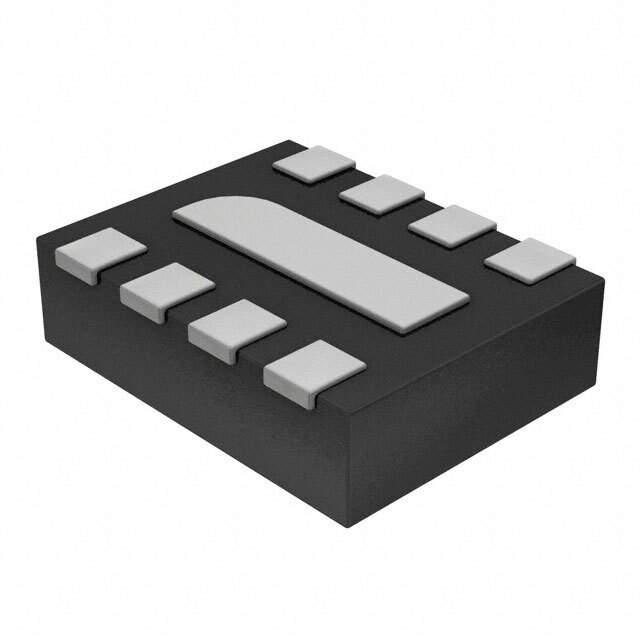

Case / Package SOT-383F
Win Source Part Number 102012-CPDVR083V3UA
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CPDVR083V3UA CAD Model

Description

Introducing the CPDVR083V3UA, a high-quality voltage regulation component characterized by its excellent thermal stability and low leakage current. This component is engineered for demanding applications that require precise voltage control.

Features and Benefits:

  • High surge capability, protecting sensitive circuit components.
  • Excellent clamping voltage for precise voltage regulation.
  • Designed for low power consumption, extending device battery life.

Applications/Projects:

  • Mobile devices
  • Power adapters
  • Battery-operated equipment
  • Communication devices

The CPDVR083V3UA is essential for ensuring the stability and efficiency of electronic circuits, offering superior protection with minimal energy loss.
