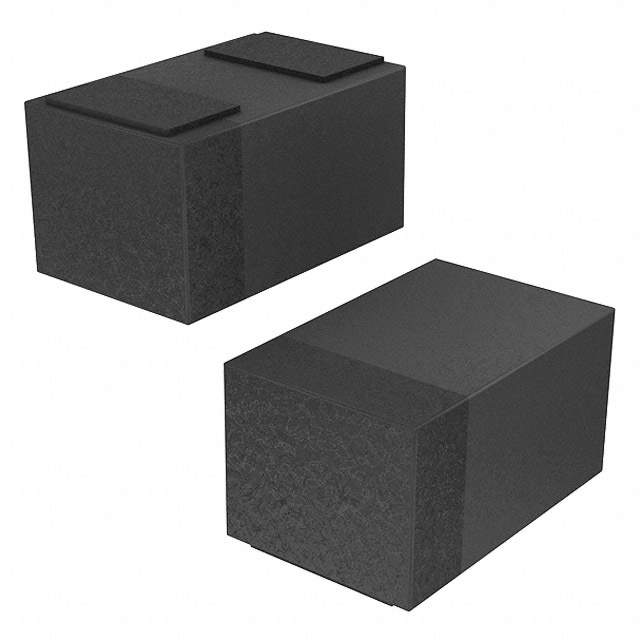

CPDQR24V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDQR24V0U-HF

Part No CPDQR24V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 24VWM 50VC 0402
Datasheet
CPDQR24V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 24V
Minimum Breakdown Voltage 26.5V
Max Clamping Voltage 50V
Peak Pulse Current(Ippm) 3A (8/20μs)
Power Dissipation - Pd 150W
Applications General Purpose
Capacitance @ Frequency 35pF @ 1MHz
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 1030076-CPDQR24V0U-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR24V0U-HF CAD Model

Description

The Comchip Technology CPDQR24V0U-HF is a Zener diode designed for general purpose applications.

  • Manufacturer: Comchip Technology
  • Application: General Purpose Applications
  • Channels: Unidirectional
  • Capacitance: 35pF @ 1MHz
  • Mounting Type: SMD (SMT)
  • Case: 0402/SOD-923F
  • STAND-OFF Voltage: 24V
  • Minimum Breakdown Voltage: 26.5V
  • Maximum Clamping Voltage: 50V
  • Peak Pulse Current: 3A (8/20μs)
  • Power Dissipation: 150W
  • Package: Reel package with 5k pcs per package
