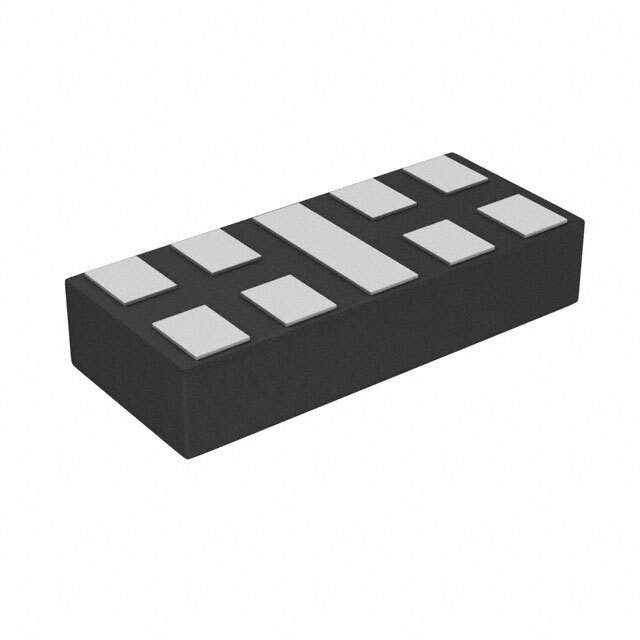

CPDA10R5V0P-HF Real Image
Same model may have multiple batches, images only for reference.

CPDA10R5V0P-HF

Part No CPDA10R5V0P-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 13VC 10DFN
Datasheet
CPDA10R5V0P-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 13V (Typ)
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 60W
Applications General Purpose
Capacitance @ Frequency 0.25pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 10-DFN (2.5x1)
Win Source Part Number 1030031-CPDA10R5V0P-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CPDA10R5V0P-HF CAD Model

Description

The Comchip Technology CPDA10R5V0P-HF is a Zener diode.

  • Design: Designed to provide a stable breakdown voltage and high surge current capability.
  • Commonly Used in: Commonly used in various electronic circuits and systems, such as voltage regulators, power supplies, and surge protectors.
  • Supply and Demand Status: Balanced.
