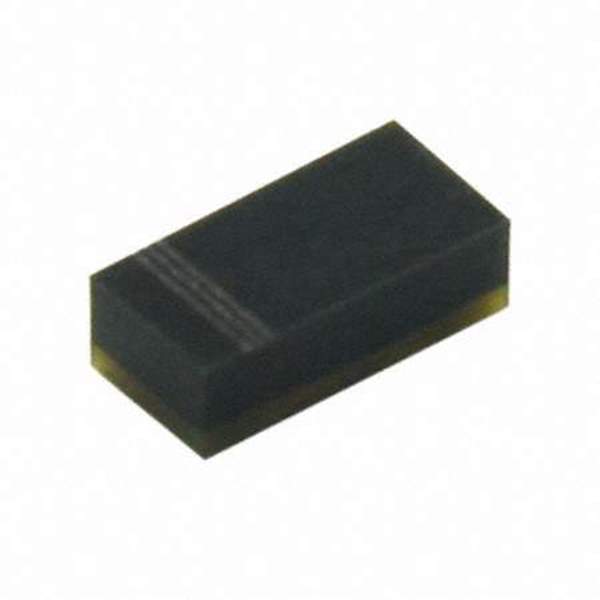

CDBF0520-HF Real Image
Same model may have multiple batches, images only for reference.

CDBF0520-HF

Part No CDBF0520-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 20V 500MA 1005
Datasheet
CDBF0520-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 470mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 20V
Capacitance @ Vr, F 100pF @ 0V, 1MHz
Mounting SMD (SMT)
Case / Package 1005/SOD-323F
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 012963-CDBF0520-HF
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4k pcs
Ultra Librarian 3D Model Ultra Librarian CDBF0520-HF CAD Model

Description

Description

The CDBF0520-HF is a versatile diode offering superior current handling capabilities. It is well-suited for a range of power management and conversion tasks, providing stability in demanding environments.

Features and Benefits

  • Enhanced current flow, supporting higher loads.
  • Robust construction for prolonged use.
  • Optimized for minimal power loss.

Applications

  • DC-DC converters
  • Battery charging circuits
  • Solar inverters
